Module Code: ST1504 DELE

Name: Yadanar Aung

Admin No.: 2214621

Class: DAAA/FT/2B/07

CA1: Part A Convolutional Neural Network

---

Importing Libraries

import tensorflow as tf

# Check GPU is available
gpus = tf.config.experimental.list_physical_devices('GPU')

# Memory control: Prevent tensorflow from allocating totality of GPU memory
for gpu in gpus:
      tf.config.experimental.set_memory_growth(gpu, True)

# Directory & File Handling
import os
import random

import matplotlib.pyplot as plt
import pandas as pd
import numpy as np
import seaborn as sns
from sklearn.metrics import confusion_matrix

# Preprocessing Data
from tensorflow.keras.utils import image_dataset_from_directory
from tensorflow.keras.preprocessing.image import load_img, img_to_array
from sklearn.utils.class_weight import compute_class_weight
from tensorflow.keras import layers

# Building CNN Model
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import Dense, Dropout, Flatten, Conv2D, MaxPooling2D, BatchNormalization

# Callbacks
from tensorflow.keras.callbacks import EarlyStopping
from tensorflow.keras.callbacks import ModelCheckpoint

---

Define Task

↳ Implement an image classifier using a deep learning network.

• Given colour images of 224 by 224 pixels, containing 15 types of vegetables.


• Convert given images into grayscale (i.e. only 1 channel instead of 3).


• Build two types of neural networks, one for each input size:
  • 31 by 31 pixels
  • 128 by 128 pixels


• Compare & discuss classification accuracies for each input size.

---

1. Background Research

Vegetables are all around us. They are grown and havested in farms and then sold at market places for consumers to consume.

• Main colour group of vegetables:

  1. Red
  2. Orange/Yellow
  3. White/Brown
  4. Green
  5. Blue/Purple

• Some vegetables have distinct features making it easy to identify them, whereas others are harder to tell apart.

Sources:
https://www.vegetables.co.nz/healthy-living/health/eat-your-colours/#:~:text=Vegetables%20can%20be%20divided%20into,green%2C%20and%20blue%2Fpurple.

---

2. Data Understanding

• Import Datasets (train, validation & test)
• Exploratory Data Analysis

Dataset Folder: Dataset for CA1 part A

We are provided with a 'Dataset for CA1 part A' Dataset with 3 sub folders named 'train', 'validation', & 'test'.

• Given color images of 224 by 224 pixels.
• Contains 15 types of vegetables.

# Define train, validation & test dataset paths
train_path = 'Data/Dataset for CA1 part A/train'
validation_path = 'Data/Dataset for CA1 part A/validation'
test_path = 'Data/Dataset for CA1 part A/test'

Basic Information of Dataset

• Total of 15,028 colored images of size 224 by 224 pixels.


• Total of 3 Sub-datasets:
  • Train: 9028 images (60%)
  • Validation: 3000 images (20%)
  • Test: 3000 images (20%)


• 15 Classes to Predict:
  • 'Bean', 'Bitter_Gourd', 'Bottle_Gourd', 'Brinjal', 'Broccoli', 'Cabbage', 'Capsicum', 'Carrot', 'Cauliflower', 'Cucumber', 'Papaya', 'Potato', 'Pumpkin', 'Radish', 'Tomato'

Import Train, Validation & Test Datasets

Use tf.keras.utils.image_dataset_from_directory. This will make a BatchDataset object.

• label_mode = 'categorical': labels data as categorical
• image_size: indicate image size to be resized so that it matches the size that model will handle

Source(s):

• https://www.tensorflow.org/api_docs/python/tf/keras/utils/image_dataset_from_directory
• https://www.tensorflow.org/tutorials/load_data/images

1. Dataset with 3 colour channels & size of 224 by 224 pixels

# Load Dataset for CA1 part A dataset
print("Train Dataset:")
train_ds = image_dataset_from_directory(train_path, labels = 'inferred', label_mode = 'categorical', image_size=(224, 224), batch_size=32)

print("\nValidation Dataset:")
validation_ds = image_dataset_from_directory(validation_path, labels = 'inferred', label_mode = 'categorical', image_size=(224, 224), batch_size=32)

print("\nTest Dataset:")
test_ds = image_dataset_from_directory(test_path, labels = 'inferred', label_mode = 'categorical', image_size=(224, 224), batch_size=32)

Train Dataset:
Found 9028 files belonging to 15 classes.

Validation Dataset:
Found 3000 files belonging to 15 classes.

Test Dataset:
Found 3000 files belonging to 15 classes.

2. Dataset with 1 colour channel & size of 128 by 128 pixels

# Grayscale Color & Resize to 128 by 128 pixels
print("Train Dataset:")
train_ds_128 = image_dataset_from_directory(train_path, labels = 'inferred', label_mode = 'categorical', color_mode = 'grayscale', image_size = (128, 128), batch_size=32)

print("\nValidation Dataset:")
validation_ds_128 = image_dataset_from_directory(validation_path, labels = 'inferred', label_mode = 'categorical', color_mode = 'grayscale', image_size = (128, 128), batch_size=32)

print("\nTest Dataset:")
test_ds_128 = image_dataset_from_directory(test_path, labels = 'inferred', label_mode = 'categorical', color_mode = 'grayscale', image_size = (128, 128), batch_size=32)

Train Dataset:
Found 9028 files belonging to 15 classes.

Validation Dataset:
Found 3000 files belonging to 15 classes.

Test Dataset:
Found 3000 files belonging to 15 classes.

3. Dataset with 1 color chanel & size of 31 by 31 pixels

# Grayscale Color & Rezize to 31 by 31 pixels
print("Train Dataset:")
train_ds_31 = image_dataset_from_directory(train_path, labels = 'inferred', label_mode = 'categorical', color_mode = 'grayscale', image_size = (31, 31), batch_size=32)

print("\nValidation Dataset:")
validation_ds_31 = image_dataset_from_directory(validation_path, labels = 'inferred', label_mode = 'categorical', color_mode = 'grayscale', image_size = (31, 31), batch_size=32)

print("\nTest Dataset:")
test_ds_31 = image_dataset_from_directory(test_path, labels = 'inferred', label_mode = 'categorical', color_mode = 'grayscale', image_size = (31, 31), batch_size=32)

Train Dataset:
Found 9028 files belonging to 15 classes.

Validation Dataset:
Found 3000 files belonging to 15 classes.

Test Dataset:
Found 3000 files belonging to 15 classes.

Obtain Class Labels

# Class labels
class_names = train_ds.class_names
num_classes = len(class_names)
class_names

['Bean',
 'Bitter_Gourd',
 'Bottle_Gourd',
 'Brinjal',
 'Broccoli',
 'Cabbage',
 'Capsicum',
 'Carrot',
 'Cauliflower',
 'Cucumber',
 'Papaya',
 'Potato',
 'Pumpkin',
 'Radish',
 'Tomato']

---

Exploratory Data Analysis

• Check Class Balance of Train Dataset
• Visualise Images from Each 15 Classes

Check Class Balance of Train Dataset

# Counts the number of files in each subfolder in a directory
def count_files(dircetory):
    class_counts = {} # Dictionary to store counts for each class

    for dirpath, _, filenames in os.walk(dircetory):
        # Exclude main dircetory
        if dirpath != dircetory:
            class_name = os.path.basename(dirpath)

            file_count = sum(1 for file in filenames if os.path.isfile(os.path.join(dirpath, file)))

            class_counts[class_name] = file_count

    return class_counts

# Number of images per Class in Train Dataset
train_class_counts = count_files(train_path)
# Number of images per class in Validation Dataset
validation_class_counts = count_files(validation_path)
# Number of images per class in Test Dataset
test_class_counts = count_files(test_path)

num = {'Train': train_class_counts, 'Validation': validation_class_counts, 'Test': test_class_counts}
df = pd.DataFrame(data=num)
df.columns = [['Number of Images','Number of Images','Number of Images'], ['Train','Validation','Test']]
df

	Number of Images
	Train	Validation	Test
Bean	780	200	200
Bitter_Gourd	720	200	200
Bottle_Gourd	441	200	200
Brinjal	868	200	200
Broccoli	750	200	200
Cabbage	503	200	200
Capsicum	351	200	200
Carrot	256	200	200
Cauliflower	587	200	200
Cucumber	812	200	200
Papaya	566	200	200
Potato	377	200	200
Pumpkin	814	200	200
Radish	248	200	200
Tomato	955	200	200

# Visualise Distribution of Image Classes

# Plot Bar Graph of image counts for each class
def plot_counts(class_counts):
    sortedClasses = sorted(class_counts.keys(), key=lambda x: class_counts[x], reverse=True)
    counts = [class_counts[class_name] for class_name in sortedClasses]

    plt.figure(figsize=(10, 6))
    plt.barh(sortedClasses, counts, color='blue')  # Use barh for horizontal bars
    plt.ylabel('Class')
    plt.xlabel('Number of Images')
    plt.title('Number of Images Per Class in Train Dataset')
    plt.tight_layout()  # Adjust layout for better display
    plt.show()

# Plot Pie Chart of image counts for each class
def plot_pie_chart(class_counts):
    sorted_classes = sorted(class_counts.keys(), key=lambda x: class_counts[x])
    sizes = [class_counts[class_name] for class_name in sorted_classes]

    plt.figure(figsize=(8, 8))
    plt.pie(sizes, labels=sorted_classes, autopct='%1.1f%%', startangle=140)
    plt.title('Percentage of Distribution of Image Classes in Train Dataset')
    plt.show()

plot_counts(train_class_counts)
plot_pie_chart(train_class_counts)

Insights:

• Training dataset is heavily imbalanced.

Potential Setbacks:

• Overfitting
• Action needs to be taken to address this issue:
  • Feature Engineering
  • Data Augmentation

Visualise Train Dataset

Visualise First Image from Each Vegetable Class In Original Size & Colour

# Loop through each category and plot the first image from each
for i, category in enumerate(class_names):
    # Get the path to the first image in the current category folder
    category_path = os.path.join(train_path, category)
    images_in_folder = os.listdir(category_path)
    first_image_of_folder = images_in_folder[0]
    first_image_path = os.path.join(category_path, first_image_of_folder)

    # Load the image and convert it into a NumPy array, then normalize the values
    img = load_img(first_image_path, target_size = (224, 224))
    img_arr = img_to_array(img) / 255.0

    # Create a subplot and plot the image with its title and no axis
    # plt.subplot(rows, columns, index)
    plt.subplot(3, 5, i + 1)
    plt.imshow(img_arr)
    plt.title(category)
    plt.axis('off')

plt.suptitle(f'First Coloured Image Per Class with Image Size = {224, 224}', fontsize = 15)
plt.tight_layout()
plt.show()

Insights:

Shape of the vegetables are commonly round, oval, circular, long.

With the Color of vegetables, it is easy for humans to identify, however if we were to pass it to computer vision.

Visualise First Image from Each Vegetable Class In Grayscale

inputSizes = [(224, 224), (128, 128), (31, 31)]
for size in inputSizes:
    # Plot 1st Image from each class
    # Create figure & set size
    plt.figure(figsize=(7, 7))

    # Loop through each category and plot the first image from each
    for i, category in enumerate(class_names):
        # Get the path to the first image in the current category folder
        category_path = os.path.join(train_path, category)
        images_in_folder = os.listdir(category_path)
        first_image_of_folder = images_in_folder[0]
        first_image_path = os.path.join(category_path, first_image_of_folder)

        # Load the image and convert it into a NumPy array, then normalize the values
        img = load_img(first_image_path, target_size = size, color_mode='grayscale')
        img_arr = img_to_array(img) / 255.0

        # Create a subplot and plot the image with its title and no axis
        # plt.subplot(rows, columns, index)
        plt.subplot(3, 5, i + 1)
        plt.imshow(img_arr, cmap='gray')
        plt.title(category)
        plt.axis('off')

    plt.suptitle(f'First Grayscaled Image Per Class with Image Size = {size}', fontsize = 15)
    plt.tight_layout()
    plt.show()

Insights:

Colour information is lost.

Common shapes of vegetable can cause confusion.

Leads to ambiguity as the vegetable is open to more than one interpretation.

Visualise Random Ten Images from Each Vegetable Class

# Create figure & set size
plt.figure(figsize=(20, 30))

# Loop through each classLabel & plot ten random images from each
for i, classLabel in enumerate(class_names):
    # Get path to all images in current classLabel folder
    classLabel_path = os.path.join(train_path, classLabel)
    images_in_folder = os.listdir(classLabel_path)

    # Randomly select ten images from current classLabel
    random_images = random.sample(images_in_folder, 10)

    for j, image_name in enumerate(random_images):
        # Get path to current image
        image_path = os.path.join(classLabel_path, image_name)

        # Load image & convert into a NumPy array
        img = load_img(image_path, target_size = (224, 224), color_mode='grayscale')
        img_arr = img_to_array(img) / 255.0 # Normalize values

        # Create subplot & plot image with title & no axis
        plt.subplot(num_classes, 10, i * 10 + j + 1)
        plt.imshow(img_arr, cmap='gray')
        plt.title(classLabel)
        plt.axis('off')

plt.suptitle('Ten Random Images Per Vegetable Class', fontsize=20)
plt.tight_layout(rect=[0, 0, 1, 0.97])
plt.show()

Insights:

• Orientation not consistent in images.
• Background of images varies. Some are taken against surrondings, others with a white backdrop.
• Quantity of vegetables vary across images.
• Sizes of vegetables also vary across images
• There're absences & presences of hand in the images.
• Some images are stretched.
• Different perspectives of the vegetables are shown in the images.
  • E.g. Top View / Insides / Zoomed in
• In conclusion, dataset is not clean & is noisy.


• Based on random selection of images, appears to be no clear indication of wrongly classified vegetables from the dataset.

---

3. Data Pre-Processing

One-Hot Encoding

We have already set the class labels to one-hot encode, when we import our train dataset using image_dataset_from_directory

• label_mode='categorical': TensorFlow automatically sets labels to be represented using one-hot encoding

Nevertheless, I will be checking the one-hot encoded vectors to ensure that it has been done so.

# Iterate through train_ds & print one-hot encoded class labels
for images, labels in train_ds:
    print("One-Hot Encoded Labels in First Batch Size of 32:")
    print(labels)
    break

One-Hot Encoded Labels in First Batch Size of 32:
tf.Tensor(
[[0. 0. 0. 0. 0. 1. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
 [0. 0. 0. 0. 0. 0. 0. 1. 0. 0. 0. 0. 0. 0. 0.]
 [0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
 [0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 1.]
 [1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
 [0. 0. 0. 0. 0. 0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
 [0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
 [0. 1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
 [0. 0. 0. 0. 1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
 [0. 0. 0. 0. 1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
 [0. 0. 0. 0. 0. 0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
 [0. 0. 0. 0. 0. 0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
 [0. 1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
 [0. 0. 0. 0. 0. 0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
 [0. 1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
 [0. 1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
 [0. 0. 0. 0. 0. 0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
 [0. 0. 0. 0. 0. 0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
 [0. 0. 0. 0. 0. 0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
 [0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
 [0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
 [0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
 [0. 0. 1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
 [0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
 [0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
 [0. 0. 0. 0. 1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
 [0. 0. 0. 0. 1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
 [0. 0. 1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
 [0. 0. 0. 0. 0. 1. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
 [0. 0. 0. 1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
 [0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
 [0. 0. 0. 1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.]], shape=(32, 15), dtype=float32)

---

Handle Class Imbalance

As the class labels are imbalanced, I will be investigating if Data Augmentation will be beneficial to the model.

Data Augmentation

This generate additional training data from existing examples by augmenting them using random transformations that yield believable-looking images. Hence, exposes model to more aspects of data to generalize better.

This prevents overfitting that might have occured due to small number of training examples.

Source:
https://www.tensorflow.org/tutorials/images/data_augmentation
https://keras.io/api/layers/preprocessing_layers/image_augmentation/

Create Preprocessing layer to perform Data Augmentation

# Function to perform data augmentation on train dataset
def dataAug(ds):
    # Preprocessing layer for Data Augmentation
    data_augmentation = tf.keras.Sequential([
        layers.RandomFlip("horizontal_and_vertical"),
        layers.RandomRotation(0.2),
        layers.RandomZoom(0.2)
    ])

    AUTOTUNE = tf.data.AUTOTUNE

    ds = ds.map(lambda x, y: (data_augmentation(x, training=True), y),
                num_parallel_calls=AUTOTUNE)

    # Use buffered prefetching on all datasets.
    return ds.prefetch(buffer_size=AUTOTUNE)

Peform Data Augmentation on Train Dataset

train_ds_128_dataAug = dataAug(train_ds_128)
train_ds_31_dataAug = dataAug(train_ds_31)

WARNING:tensorflow:Using a while_loop for converting RngReadAndSkip cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting Bitcast cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting Bitcast cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting StatelessRandomUniformV2 cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting ImageProjectiveTransformV3 cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting RngReadAndSkip cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting Bitcast cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting Bitcast cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting StatelessRandomUniformV2 cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting ImageProjectiveTransformV3 cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting RngReadAndSkip cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting Bitcast cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting Bitcast cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting StatelessRandomUniformV2 cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting ImageProjectiveTransformV3 cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting RngReadAndSkip cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting Bitcast cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting Bitcast cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting StatelessRandomUniformV2 cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting ImageProjectiveTransformV3 cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting RngReadAndSkip cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting Bitcast cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting Bitcast cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting StatelessRandomUniformV2 cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting ImageProjectiveTransformV3 cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting RngReadAndSkip cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting Bitcast cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting Bitcast cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting StatelessRandomUniformV2 cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting ImageProjectiveTransformV3 cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting RngReadAndSkip cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting Bitcast cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting Bitcast cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting StatelessRandomUniformV2 cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting ImageProjectiveTransformV3 cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting RngReadAndSkip cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting Bitcast cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting Bitcast cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting StatelessRandomUniformV2 cause there is no registered converter for this op.
WARNING:tensorflow:Using a while_loop for converting ImageProjectiveTransformV3 cause there is no registered converter for this op.

Visualize Sample of Data Augmentated Images

# Take a few batches from the dataset
augmented_batch = next(iter(train_ds_128_dataAug))

# Extract images & labels
images, labels = augmented_batch

# Convert labels to integers
label_indices = tf.argmax(labels, axis=1).numpy()

# Visualize the images
plt.figure(figsize=(15, 8))
for i in range(5):
    plt.subplot(1, 5, i + 1)
    plt.imshow(images[i].numpy().astype("uint8"), cmap='gray')
    plt.title(f"Label: {class_names[label_indices[i]]}")
    plt.axis("off")
plt.show()

Combine the original train dataset & data augmentated train dataset.

Now, we have double the number of train images at 18,112.

# Concatenate data augmentation dataset with original dataset
train_ds_128_dataAug = train_ds_128_dataAug.concatenate(train_ds_128)
train_ds_31_dataAug = train_ds_31_dataAug.concatenate(train_ds_31)

---

Rescaling Input Pixel Values

A Neural Network learns its weights by continually adding gradient error vectors (multiplied by a learning rate) computed from backpropagation to various weights throughout the network as training samples are passed through.

Hence, it is important to normalize the inputs such that the ranges of distributions of feature values would not be different for each feature. Thus, not leading to the learning rate casuing corrections in each dimension that would differ proportionally from one another.

Normalizing the inputs is ideal as we do not want to find ourselves unable to center onto a better maxima in weights space state or in a slow moving to a better maxima state.

Source: https://stats.stackexchange.com/questions/185853/why-do-we-need-to-normalize-the-images-before-we-put-them-into-cnn

# Extract from dataset
for images, labels in train_ds_128_dataAug.take(1):
    # Print statistics
    print("Pixel Statistics for the original train dataset:")
    print(f"Minimum pixel value: {images.numpy().min()}")
    print(f"Maximum pixel value: {images.numpy().max()}")
    print(f"Mean pixel value: {images.numpy().mean()}")
    print(f"Standard deviation of pixel values: {images.numpy().std()}")

Pixel Statistics for the original train dataset:
Minimum pixel value: 0.0
Maximum pixel value: 253.56655883789062
Mean pixel value: 113.79469299316406
Standard deviation of pixel values: 51.41456985473633

Currently, the input pixel sizes are in the range [0, 255].

Hence, I am going to rescale the input pixel sizes to make the pixel sizes on the same scale, so that the neural network can converge during the gradient descent better.

I will rescale all 3 datasets of train, test & validation in order to maintain consistency.

I will rescale both train datasets with and without data augmentation for comparison later on.

# Rescale inputs from [0 - 255] to [0 - 1]

# Input size: 128 by 128 pixels
train_ds_128_rescaled = train_ds_128.map(lambda x, y: (x / 255.0, y))
train_ds_128_dataAug_rescaled = train_ds_128_dataAug.map(lambda x, y: (x / 255.0, y))
validation_ds_128_rescaled = validation_ds_128.map(lambda x, y: (x / 255.0, y))
test_ds_128_rescaled = test_ds_128.map(lambda x, y: (x / 255.0, y))

# Input size: 31 by 31 pixels
train_ds_31_rescaled = train_ds_31.map(lambda x, y: (x / 255.0, y))
train_ds_31_dataAug_rescaled = train_ds_31_dataAug.map(lambda x, y: (x / 255.0, y))
validation_ds_31_rescaled = validation_ds_31.map(lambda x, y: (x / 255.0, y))
test_ds_31_rescaled = test_ds_31.map(lambda x, y: (x / 255.0, y))

# Extract a batch from the normalized dataset
for images, labels in train_ds_128_dataAug_rescaled.take(1):
    # Print statistics
    print("Pixel Statistics for the normalized train dataset:")
    print(f"Minimum pixel value: {images.numpy().min()}")
    print(f"Maximum pixel value: {images.numpy().max()}")
    print(f"Mean pixel value: {images.numpy().mean()}")
    print(f"Standard deviation of pixel values: {images.numpy().std()}")

Pixel Statistics for the normalized train dataset:
Minimum pixel value: 0.0
Maximum pixel value: 0.9960784316062927
Mean pixel value: 0.45157885551452637
Standard deviation of pixel values: 0.21337109804153442

The input sizes are now in the range [0,1].

---

Check Shape of Batches of 32 Images & Label

• Shape should be as follows: [samples][width][height][channel]

# Default shape in TF: N H W C
for image_batch, labels_batch in train_ds_128_dataAug_rescaled:
    print('Shape of Each Batch of 32 Images:', image_batch.shape) # batch of 32 images of shape 128 x 128 x 1 color channel
    print('Shape of Each Batch 15 Classes:', labels_batch.shape) #  batch of 32 images of 15 classes
    print('\nFirst Image in Batch:\n', image_batch[0]) # first image in the batch
    break

Shape of Each Batch of 32 Images: (32, 128, 128, 1)
Shape of Each Batch 15 Classes: (32, 15)

First Image in Batch:
 tf.Tensor(
[[[0.21695852]
  [0.21750005]
  [0.2542193 ]
  ...
  [0.35875082]
  [0.36177886]
  [0.35930458]]

 [[0.19724315]
  [0.1998232 ]
  [0.22806044]
  ...
  [0.36083373]
  [0.36221662]
  [0.35816777]]

 [[0.1833131 ]
  [0.18680121]
  [0.20767565]
  ...
  [0.37250146]
  [0.37248576]
  [0.36548913]]

 ...

 [[0.41363707]
  [0.411267  ]
  [0.40676948]
  ...
  [0.61402327]
  [0.5958905 ]
  [0.59446615]]

 [[0.40693903]
  [0.39742497]
  [0.3899856 ]
  ...
  [0.5802054 ]
  [0.5755106 ]
  [0.5780593 ]]

 [[0.40645716]
  [0.39580986]
  [0.38733116]
  ...
  [0.53335845]
  [0.5367797 ]
  [0.5411091 ]]], shape=(128, 128, 1), dtype=float32)

---

4. Modelling

• Explanation of Layers used:
  • Convolutional
    • Extract features from 2D image with relu activation function
  • MaxPooling2D
    • Downsample the image features
  • Flatten
    • Flatten data from 2D array to 1D array
  • Dropout
    • Reduce overfitting by randomly dropping out a number of output units from the layer during the training process
  • Dense:
    • Capture more information
  • Batch Normalization
    • Purpose: Standardizes the input of layers across a single batch
    • Why?: Issue of internal covariate shift, whereby during training, parameters change, hence activations in intermediate layers are constantly changing
    • Importance: Normalizes input of each layer to reduce internal covariate shift. It helps to speed up training & use higher learning rates, making learning easier.

Source:

• https://algoritmaonline.com/image-classification-cnn/
• https://www.tensorflow.org/tutorials/images/classification#dropout
• https://www.baeldung.com/cs/batch-normalization-cnn#:~:text=Normalization%20is%20a%20pre%2Dprocessing,and%20decrease%20its%20learning%20speed.

# Fix random seed for reproducibility
seed = 42
np.random.seed(seed)

Evaluation Methodology:

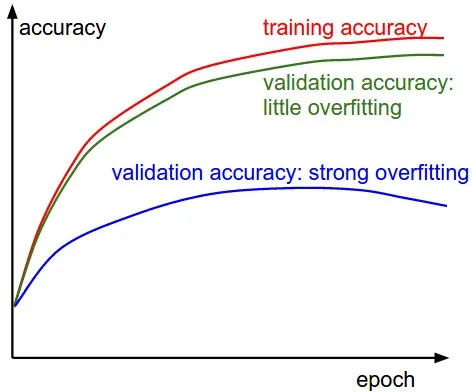

1. Accuracy Curve

• The gap between training & validation accuracy is a clear indication of overfitting. The larger the gap, the higher the overfitting.

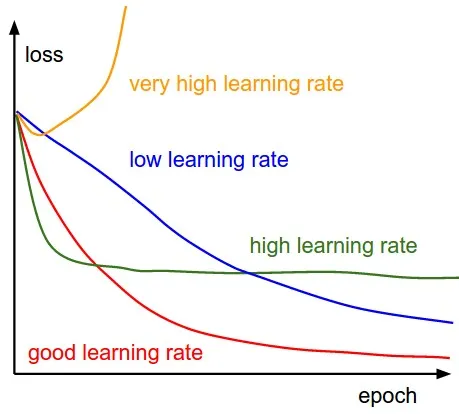

2. Loss Curve



Source: https://towardsdatascience.com/useful-plots-to-diagnose-your-neural-network-521907fa2f45

Utility Functions

# Function to plot comparison between train & validation metrics
def plotCompareMetrics(history):
    # Plot train vs validation metric per epoch
    plt.figure(figsize = (15, 5))

    plt.subplot(1, 2, 1)
    plt.grid(True)
    # Accuracy
    plt.plot(history.history['accuracy'])
    plt.plot(history.history['val_accuracy'])
    # Make it pretty
    plt.title('Model Accuracy')
    plt.ylabel('Accuracy')
    plt.xlabel('Epochs')
    plt.legend(['Train', 'Validation'], loc = 'best')

    plt.subplot(1, 2, 2)
    plt.grid(True)
    # Loss
    plt.plot(history.history['loss'])
    plt.plot(history.history['val_loss'])
    # Make it pretty
    plt.title('Model Loss')
    plt.ylabel('Loss')
    plt.xlabel('Epochs')
    plt.legend(['Train', 'Validation'], loc = 'best')
    plt.show()

# Function to plot confusion matrix
def plot_confusion_matrix(y_true, y_preds, class_names):
    cm = confusion_matrix(y_true, y_preds)
    plt.figure(figsize=(15,9))
    sns.heatmap(cm, annot=True, fmt='.0f')
    plt.ylabel("True values",size=20)
    plt.xlabel('Predicted values',size=20)
    plt.xticks(ticks=np.arange(len(class_names))+0.5,labels=class_names,rotation=60)
    plt.yticks(ticks=np.arange(len(class_names))+0.5,labels=class_names,rotation=0)

# Function ot Make predictions on test dataset
def makePredictions(model, test_dataset, class_names):
    test_ds_images = []
    test_ds_labels = []
    for image_batch, labels_batch in test_dataset.unbatch().as_numpy_iterator():
        test_ds_images.append(image_batch)
        test_ds_labels.append(labels_batch)
    # Currently, test_ds_images & test_ds_labels are a list of NumPy arrays
    # Convert test_ds_images & test_ds_labels into a NumPy array
    test_ds_images = np.array(test_ds_images)
    test_ds_labels = np.array(test_ds_labels)

    # Class probabilities for each sample
    y_probs = model.predict(test_ds_images) # Contains the probabilities for each class for each sample
    # Convert prediction probabilities to predicted class labels, convert one-hot encoded labels to integers
    y_preds = np.argmax(y_probs, axis=1)

    # Extract true labels from test dataset, convert one-hot encoded labels to integers
    y_labels = np.argmax(test_ds_labels, axis=1)

    # Store correctly classified images
    true_class = list()
    # Store worngly classified images
    false_class = list()

    for i in range(len(test_ds_images)):
        if y_preds[i] != y_labels[i]:
            false_class.append((test_ds_images[i], y_preds[i], y_labels[i]))
        else:
            true_class.append((test_ds_images[i], y_preds[i], y_labels[i]))

    return y_labels, y_preds, true_class, false_class

# Function to display images with true and predicted labels
def plot_prediction(predicted_images):
    random.shuffle(predicted_images)
    plt.figure(figsize=(10, 10))
    for i in range(1, 17):
        plt.subplot(4, 4, i)
        plt.imshow(predicted_images[i][0].astype("float"), cmap='gray')
        plt.title(f'True: {class_names[predicted_images[i][2]]}\nPredicted: {class_names[predicted_images[i][1]]}')
        plt.axis('off')
    plt.tight_layout()

Callbacks

EarlyStopping monitor 'val_loss'

# Instantiate an early stopping callback to prevent overfitting
early_stopping = EarlyStopping(monitor = 'val_loss', patience = 10)

---

Baseline Simple CNN Model

I will start off by buidling a simple baseline CNN model with the purpose to evaluate if data augmentation will be beneficial to our models.

Afterwards, I will improve on my model by making it more complex.

A. Input size: 128 by 128 pixels

Original Rescaled Train Dataset

baseline_model_128_original = Sequential()

# Convolutional Layer
baseline_model_128_original.add(Conv2D(32, (3,3), input_shape=(128, 128, 1), activation='relu'))
# Pooling layer
baseline_model_128_original.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
baseline_model_128_original.add(Dropout(0.2))
# Convolutional Layer
baseline_model_128_original.add(Conv2D(64, (3,3), activation='relu'))
# Pooling layer
baseline_model_128_original.add(MaxPooling2D(pool_size=(2, 2)))

# Flatten the feature map
baseline_model_128_original.add(Flatten())

# Fully connected layer
baseline_model_128_original.add(Dense(128, activation='relu'))
baseline_model_128_original.add(Dense(num_classes, activation='softmax'))

# Compile basedline_model_128
baseline_model_128_original.compile(loss='categorical_crossentropy', optimizer='adam', metrics=['accuracy'])

# print the basedline_model_128 summary
baseline_model_128_original.summary()

Model: "sequential_12"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 conv2d_44 (Conv2D)          (None, 126, 126, 32)      320

 max_pooling2d_23 (MaxPoolin  (None, 63, 63, 32)       0
 g2D)

 dropout_29 (Dropout)        (None, 63, 63, 32)        0

 conv2d_45 (Conv2D)          (None, 61, 61, 64)        18496

 max_pooling2d_24 (MaxPoolin  (None, 30, 30, 64)       0
 g2D)

 flatten_8 (Flatten)         (None, 57600)             0

 dense_16 (Dense)            (None, 128)               7372928

 dense_17 (Dense)            (None, 15)                1935

=================================================================
Total params: 7,393,679
Trainable params: 7,393,679
Non-trainable params: 0
_________________________________________________________________

Architecture of Baseline Simple CNN Model

tf.keras.utils.plot_model(baseline_model_128_original, show_shapes=True)

# Fit model with original train dataset
history_baseline_model_128_original = baseline_model_128_original.fit(train_ds_128_rescaled, validation_data = validation_ds_128_rescaled, epochs = 30, verbose = 1)

# Save weights
baseline_model_128_original.save_weights('baseline_model_128_rescaled_weights.h5')

# Summarize history for accuracy & loss
plotCompareMetrics(history_baseline_model_128_original)

# Final evaluation of model
scores = baseline_model_128_original.evaluate(test_ds_128_rescaled, verbose = 0)
print("Loss on Test Dataset: %.4f%%" % (scores[0]))
print("Accuracy on Test Dataset: %.2f%%" % (scores[1]*100))
print("CNN Error on Test Dataset: %.2f%%" % (100 - scores[1]*100))

Epoch 1/30
283/283 [==============================] - 4s 11ms/step - loss: 2.0959 - accuracy: 0.3423 - val_loss: 1.7173 - val_accuracy: 0.4763
Epoch 2/30
283/283 [==============================] - 3s 11ms/step - loss: 1.2845 - accuracy: 0.6071 - val_loss: 1.2348 - val_accuracy: 0.6210
Epoch 3/30
283/283 [==============================] - 3s 11ms/step - loss: 0.8065 - accuracy: 0.7543 - val_loss: 0.9968 - val_accuracy: 0.7003
Epoch 4/30
283/283 [==============================] - 3s 11ms/step - loss: 0.4663 - accuracy: 0.8605 - val_loss: 1.0424 - val_accuracy: 0.6977
Epoch 5/30
283/283 [==============================] - 3s 11ms/step - loss: 0.2595 - accuracy: 0.9278 - val_loss: 1.0282 - val_accuracy: 0.7363
Epoch 6/30
283/283 [==============================] - 3s 11ms/step - loss: 0.1444 - accuracy: 0.9596 - val_loss: 1.0539 - val_accuracy: 0.7283
Epoch 7/30
283/283 [==============================] - 3s 11ms/step - loss: 0.0726 - accuracy: 0.9815 - val_loss: 1.0097 - val_accuracy: 0.7693
Epoch 8/30
283/283 [==============================] - 3s 12ms/step - loss: 0.0646 - accuracy: 0.9832 - val_loss: 1.1411 - val_accuracy: 0.7433
Epoch 9/30
283/283 [==============================] - 3s 11ms/step - loss: 0.0771 - accuracy: 0.9754 - val_loss: 1.0647 - val_accuracy: 0.7690
Epoch 10/30
283/283 [==============================] - 3s 11ms/step - loss: 0.0482 - accuracy: 0.9874 - val_loss: 1.2307 - val_accuracy: 0.7380
Epoch 11/30
283/283 [==============================] - 3s 11ms/step - loss: 0.0242 - accuracy: 0.9944 - val_loss: 1.1119 - val_accuracy: 0.7817
Epoch 12/30
283/283 [==============================] - 3s 11ms/step - loss: 0.0064 - accuracy: 0.9992 - val_loss: 1.3605 - val_accuracy: 0.7557
Epoch 13/30
283/283 [==============================] - 3s 11ms/step - loss: 0.0614 - accuracy: 0.9812 - val_loss: 1.4350 - val_accuracy: 0.7133
Epoch 14/30
283/283 [==============================] - 3s 11ms/step - loss: 0.0420 - accuracy: 0.9879 - val_loss: 1.4162 - val_accuracy: 0.7453
Epoch 15/30
283/283 [==============================] - 3s 11ms/step - loss: 0.0281 - accuracy: 0.9921 - val_loss: 1.2797 - val_accuracy: 0.7717
Epoch 16/30
283/283 [==============================] - 3s 11ms/step - loss: 0.0060 - accuracy: 0.9992 - val_loss: 1.3244 - val_accuracy: 0.7773
Epoch 17/30
283/283 [==============================] - 3s 11ms/step - loss: 0.0014 - accuracy: 1.0000 - val_loss: 1.3029 - val_accuracy: 0.7847
Epoch 18/30
283/283 [==============================] - 3s 11ms/step - loss: 8.5760e-04 - accuracy: 1.0000 - val_loss: 1.3263 - val_accuracy: 0.7870
Epoch 19/30
283/283 [==============================] - 3s 11ms/step - loss: 5.7047e-04 - accuracy: 1.0000 - val_loss: 1.3632 - val_accuracy: 0.7843
Epoch 20/30
283/283 [==============================] - 3s 11ms/step - loss: 4.1325e-04 - accuracy: 1.0000 - val_loss: 1.3709 - val_accuracy: 0.7873
Epoch 21/30
283/283 [==============================] - 3s 11ms/step - loss: 2.9994e-04 - accuracy: 1.0000 - val_loss: 1.3819 - val_accuracy: 0.7870
Epoch 22/30
283/283 [==============================] - 3s 11ms/step - loss: 2.5057e-04 - accuracy: 1.0000 - val_loss: 1.4174 - val_accuracy: 0.7887
Epoch 23/30
283/283 [==============================] - 3s 11ms/step - loss: 2.3203e-04 - accuracy: 1.0000 - val_loss: 1.4394 - val_accuracy: 0.7880
Epoch 24/30
283/283 [==============================] - 3s 11ms/step - loss: 1.7456e-04 - accuracy: 1.0000 - val_loss: 1.4498 - val_accuracy: 0.7890
Epoch 25/30
283/283 [==============================] - 3s 11ms/step - loss: 1.4235e-04 - accuracy: 1.0000 - val_loss: 1.4645 - val_accuracy: 0.7893
Epoch 26/30
283/283 [==============================] - 3s 11ms/step - loss: 1.2458e-04 - accuracy: 1.0000 - val_loss: 1.4832 - val_accuracy: 0.7903
Epoch 27/30
283/283 [==============================] - 3s 11ms/step - loss: 1.0901e-04 - accuracy: 1.0000 - val_loss: 1.5035 - val_accuracy: 0.7913
Epoch 28/30
283/283 [==============================] - 3s 11ms/step - loss: 9.5134e-05 - accuracy: 1.0000 - val_loss: 1.5095 - val_accuracy: 0.7913
Epoch 29/30
283/283 [==============================] - 3s 11ms/step - loss: 7.7541e-05 - accuracy: 1.0000 - val_loss: 1.5267 - val_accuracy: 0.7907
Epoch 30/30
283/283 [==============================] - 3s 11ms/step - loss: 7.0626e-05 - accuracy: 1.0000 - val_loss: 1.5419 - val_accuracy: 0.7917

Loss on Test Dataset: 1.4051%
Accuracy on Test Dataset: 80.33%
CNN Error on Test Dataset: 19.67%

Insights for Accuracy:

In the plots above, the training accuracy is increasing linearly over time, whereas validation accuracy stalls around 75% in the training process.

There is a big gap in accuracy between training and validation, showing signs of overfitting. The model hence has a difficult time generalising on a new dataset.

As we have seen in the Exploratory Data Analysis, with a small number of training examples, the model sometimes learns from noises or unwanted details from training examples. This might have led to the negative impacts on the performance of the model on new examples.

Insights for Loss:

Simiarly, we see that the loss for train & validation starts to diverage & there is a big gap.

Rescaled & Data Augmentated Train Dataset

baseline_model_128_dataAug = Sequential()

# Convolutional Layer
baseline_model_128_dataAug.add(Conv2D(32, (3,3), input_shape=(128, 128, 1), activation='relu'))
# Pooling layer
baseline_model_128_dataAug.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
baseline_model_128_dataAug.add(Dropout(0.2))
# Convolutional Layer
baseline_model_128_dataAug.add(Conv2D(64, (3,3), activation='relu'))
# Pooling layer
baseline_model_128_dataAug.add(MaxPooling2D(pool_size=(2, 2)))

# Flatten the feature map
baseline_model_128_dataAug.add(Flatten())

# Fully connected layer
baseline_model_128_dataAug.add(Dense(128, activation='relu'))
baseline_model_128_dataAug.add(Dense(num_classes, activation='softmax'))

# Compile basedline_model_128
baseline_model_128_dataAug.compile(loss='categorical_crossentropy', optimizer='adam', metrics=['accuracy'])

# print the basedline_model_128 summary
baseline_model_128_dataAug.summary()

Model: "sequential_2"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 conv2d (Conv2D)             (None, 126, 126, 32)      320

 max_pooling2d (MaxPooling2D  (None, 63, 63, 32)       0
 )

 dropout (Dropout)           (None, 63, 63, 32)        0

 conv2d_1 (Conv2D)           (None, 61, 61, 64)        18496

 max_pooling2d_1 (MaxPooling  (None, 30, 30, 64)       0
 2D)

 flatten (Flatten)           (None, 57600)             0

 dense (Dense)               (None, 128)               7372928

 dense_1 (Dense)             (None, 15)                1935

=================================================================
Total params: 7,393,679
Trainable params: 7,393,679
Non-trainable params: 0
_________________________________________________________________

# Fit model with rescaled & data augmentated train dataset
history_baseline_model_128_dataAug = baseline_model_128_dataAug.fit(train_ds_128_dataAug_rescaled, validation_data = validation_ds_128_rescaled, epochs = 30, verbose = 1)

# save weights
baseline_model_128_dataAug.save_weights('baseline_model_128_dataAug_weights.h5')

# Summarize history for accuracy & loss
plotCompareMetrics(history_baseline_model_128_dataAug)

# Final evaluation of model
scores = baseline_model_128_dataAug.evaluate(test_ds_128_rescaled, verbose = 0)
print("Loss on Test Dataset: %.4f%%" % (scores[0]))
print("Accuracy on Test Dataset: %.2f%%" % (scores[1]*100))
print("CNN Error on Test Dataset: %.2f%%" % (100 - scores[1]*100))

Epoch 1/30
566/566 [==============================] - 12s 12ms/step - loss: 2.0684 - accuracy: 0.3405 - val_loss: 1.3736 - val_accuracy: 0.5873
Epoch 2/30
566/566 [==============================] - 7s 12ms/step - loss: 1.3127 - accuracy: 0.5881 - val_loss: 0.9857 - val_accuracy: 0.6883
Epoch 3/30
566/566 [==============================] - 7s 12ms/step - loss: 0.9742 - accuracy: 0.6938 - val_loss: 0.7624 - val_accuracy: 0.7697
Epoch 4/30
566/566 [==============================] - 7s 12ms/step - loss: 0.7857 - accuracy: 0.7537 - val_loss: 0.7085 - val_accuracy: 0.7990
Epoch 5/30
566/566 [==============================] - 7s 12ms/step - loss: 0.6881 - accuracy: 0.7882 - val_loss: 0.6580 - val_accuracy: 0.8160
Epoch 6/30
566/566 [==============================] - 7s 12ms/step - loss: 0.6122 - accuracy: 0.8117 - val_loss: 0.6141 - val_accuracy: 0.8243
Epoch 7/30
566/566 [==============================] - 7s 12ms/step - loss: 0.5363 - accuracy: 0.8355 - val_loss: 0.5442 - val_accuracy: 0.8463
Epoch 8/30
566/566 [==============================] - 7s 12ms/step - loss: 0.4968 - accuracy: 0.8465 - val_loss: 0.5266 - val_accuracy: 0.8523
Epoch 9/30
566/566 [==============================] - 7s 12ms/step - loss: 0.4656 - accuracy: 0.8553 - val_loss: 0.4959 - val_accuracy: 0.8580
Epoch 10/30
566/566 [==============================] - 7s 12ms/step - loss: 0.4457 - accuracy: 0.8647 - val_loss: 0.4830 - val_accuracy: 0.8693
Epoch 11/30
566/566 [==============================] - 7s 12ms/step - loss: 0.4230 - accuracy: 0.8709 - val_loss: 0.4389 - val_accuracy: 0.8797
Epoch 12/30
566/566 [==============================] - 7s 12ms/step - loss: 0.3860 - accuracy: 0.8787 - val_loss: 0.4365 - val_accuracy: 0.8807
Epoch 13/30
566/566 [==============================] - 7s 12ms/step - loss: 0.3880 - accuracy: 0.8789 - val_loss: 0.4123 - val_accuracy: 0.8867
Epoch 14/30
566/566 [==============================] - 7s 13ms/step - loss: 0.3615 - accuracy: 0.8886 - val_loss: 0.4044 - val_accuracy: 0.8887
Epoch 15/30
566/566 [==============================] - 7s 13ms/step - loss: 0.3253 - accuracy: 0.8970 - val_loss: 0.3818 - val_accuracy: 0.8960
Epoch 16/30
566/566 [==============================] - 7s 13ms/step - loss: 0.3272 - accuracy: 0.9000 - val_loss: 0.3789 - val_accuracy: 0.8960
Epoch 17/30
566/566 [==============================] - 7s 13ms/step - loss: 0.3058 - accuracy: 0.9064 - val_loss: 0.3654 - val_accuracy: 0.9007
Epoch 18/30
566/566 [==============================] - 7s 13ms/step - loss: 0.3022 - accuracy: 0.9055 - val_loss: 0.3406 - val_accuracy: 0.9030
Epoch 19/30
566/566 [==============================] - 7s 13ms/step - loss: 0.2965 - accuracy: 0.9081 - val_loss: 0.3404 - val_accuracy: 0.9060
Epoch 20/30
566/566 [==============================] - 7s 13ms/step - loss: 0.2714 - accuracy: 0.9154 - val_loss: 0.3308 - val_accuracy: 0.9077
Epoch 21/30
566/566 [==============================] - 7s 12ms/step - loss: 0.2699 - accuracy: 0.9170 - val_loss: 0.3264 - val_accuracy: 0.9113
Epoch 22/30
566/566 [==============================] - 7s 12ms/step - loss: 0.2632 - accuracy: 0.9188 - val_loss: 0.3178 - val_accuracy: 0.9080
Epoch 23/30
566/566 [==============================] - 7s 12ms/step - loss: 0.2497 - accuracy: 0.9231 - val_loss: 0.2968 - val_accuracy: 0.9160
Epoch 24/30
566/566 [==============================] - 7s 12ms/step - loss: 0.2465 - accuracy: 0.9218 - val_loss: 0.2997 - val_accuracy: 0.9163
Epoch 25/30
566/566 [==============================] - 7s 12ms/step - loss: 0.2335 - accuracy: 0.9277 - val_loss: 0.3169 - val_accuracy: 0.9137
Epoch 26/30
566/566 [==============================] - 7s 12ms/step - loss: 0.2248 - accuracy: 0.9292 - val_loss: 0.2976 - val_accuracy: 0.9200
Epoch 27/30
566/566 [==============================] - 7s 12ms/step - loss: 0.2214 - accuracy: 0.9286 - val_loss: 0.2920 - val_accuracy: 0.9220
Epoch 28/30
566/566 [==============================] - 7s 12ms/step - loss: 0.2121 - accuracy: 0.9333 - val_loss: 0.2894 - val_accuracy: 0.9227
Epoch 29/30
566/566 [==============================] - 7s 12ms/step - loss: 0.2017 - accuracy: 0.9382 - val_loss: 0.3105 - val_accuracy: 0.9193
Epoch 30/30
566/566 [==============================] - 7s 12ms/step - loss: 0.2166 - accuracy: 0.9317 - val_loss: 0.2858 - val_accuracy: 0.9243

Loss on Test Dataset: 0.2692%
Accuracy on Test Dataset: 91.90%
CNN Error on Test Dataset: 8.10%

Insights:

• Less overfitting with rescaled & data augmentated train dataset.
• The gap between the train & validation metrics is smaller for training with rescaled & data augmentated trian dataset.
• Test accuracy has improved as compared to using the original rescaled dataset.
• However, the trade off is that the train accuracy has decreased as compared to using the original rescaled dataset.

Hence, data augmentation has proven to be beneficial as it has improved the performance of the model by reducing overfitting by introducing more data to learn from to prevent generalization.

B. Input size: 31 by 31 pixels

Original Rescaled Train Dataset

baseline_model_31_original = Sequential()

# Convolutional Layer
baseline_model_31_original.add(Conv2D(32, (3,3), input_shape=(31, 31, 1), activation='relu'))
# Pooling layer
baseline_model_31_original.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
baseline_model_31_original.add(Dropout(0.2))
# Convolutional Layer
baseline_model_31_original.add(Conv2D(64, (3,3), activation='relu'))
# Pooling layer
baseline_model_31_original.add(MaxPooling2D(pool_size=(2, 2)))

# Flatten the feature map
baseline_model_31_original.add(Flatten())

# Fully connected layer
baseline_model_31_original.add(Dense(128, activation='relu'))
baseline_model_31_original.add(Dense(num_classes, activation='softmax'))

# Compile baseline_model_31_original
baseline_model_31_original.compile(loss='categorical_crossentropy', optimizer='adam', metrics=['accuracy'])

# print the baseline_model_31_original summary
baseline_model_31_original.summary()

Model: "sequential_14"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 conv2d_48 (Conv2D)          (None, 29, 29, 32)        320

 max_pooling2d_27 (MaxPoolin  (None, 14, 14, 32)       0
 g2D)

 dropout_31 (Dropout)        (None, 14, 14, 32)        0

 conv2d_49 (Conv2D)          (None, 12, 12, 64)        18496

 max_pooling2d_28 (MaxPoolin  (None, 6, 6, 64)         0
 g2D)

 flatten_10 (Flatten)        (None, 2304)              0

 dense_20 (Dense)            (None, 128)               295040

 dense_21 (Dense)            (None, 15)                1935

=================================================================
Total params: 315,791
Trainable params: 315,791
Non-trainable params: 0
_________________________________________________________________

# Fit model with original train dataset
history_basedline_model_31_original = baseline_model_31_original.fit(train_ds_31_rescaled, validation_data = validation_ds_31_rescaled, epochs = 30, verbose = 1)

# save weights
baseline_model_31_original.save_weights('baseline_model_31_rescaled_weights.h5')

# Summarize history for accuracy & loss
plotCompareMetrics(history_basedline_model_31_original)

# Final evaluation of model
scores = baseline_model_31_original.evaluate(test_ds_31_rescaled, verbose = 0)
print("Loss on Test Dataset: %.4f%%" % (scores[0]))
print("Accuracy on Test Dataset: %.2f%%" % (scores[1]*100))
print("CNN Error on Test Dataset: %.2f%%" % (100 - scores[1]*100))

Epoch 1/30
283/283 [==============================] - 2s 6ms/step - loss: 2.3446 - accuracy: 0.2335 - val_loss: 1.9836 - val_accuracy: 0.3817
Epoch 2/30
283/283 [==============================] - 2s 6ms/step - loss: 1.6670 - accuracy: 0.4670 - val_loss: 1.6116 - val_accuracy: 0.4783
Epoch 3/30
283/283 [==============================] - 2s 6ms/step - loss: 1.3370 - accuracy: 0.5712 - val_loss: 1.3778 - val_accuracy: 0.5643
Epoch 4/30
283/283 [==============================] - 2s 6ms/step - loss: 1.1002 - accuracy: 0.6485 - val_loss: 1.2225 - val_accuracy: 0.5947
Epoch 5/30
283/283 [==============================] - 2s 6ms/step - loss: 0.9229 - accuracy: 0.7079 - val_loss: 0.9688 - val_accuracy: 0.6857
Epoch 6/30
283/283 [==============================] - 2s 6ms/step - loss: 0.8048 - accuracy: 0.7509 - val_loss: 0.9234 - val_accuracy: 0.7050
Epoch 7/30
283/283 [==============================] - 3s 11ms/step - loss: 0.6806 - accuracy: 0.7915 - val_loss: 0.9027 - val_accuracy: 0.7270
Epoch 8/30
283/283 [==============================] - 3s 10ms/step - loss: 0.5988 - accuracy: 0.8146 - val_loss: 0.8084 - val_accuracy: 0.7553
Epoch 9/30
283/283 [==============================] - 2s 5ms/step - loss: 0.5119 - accuracy: 0.8422 - val_loss: 0.7584 - val_accuracy: 0.7707
Epoch 10/30
283/283 [==============================] - 2s 6ms/step - loss: 0.4509 - accuracy: 0.8613 - val_loss: 0.7014 - val_accuracy: 0.7820
Epoch 11/30
283/283 [==============================] - 2s 6ms/step - loss: 0.3933 - accuracy: 0.8784 - val_loss: 0.7190 - val_accuracy: 0.7840
Epoch 12/30
283/283 [==============================] - 2s 5ms/step - loss: 0.3376 - accuracy: 0.8979 - val_loss: 0.7027 - val_accuracy: 0.7877
Epoch 13/30
283/283 [==============================] - 2s 6ms/step - loss: 0.3058 - accuracy: 0.9047 - val_loss: 0.6783 - val_accuracy: 0.8033
Epoch 14/30
283/283 [==============================] - 2s 6ms/step - loss: 0.2735 - accuracy: 0.9161 - val_loss: 0.9125 - val_accuracy: 0.7367
Epoch 15/30
283/283 [==============================] - 2s 6ms/step - loss: 0.2347 - accuracy: 0.9277 - val_loss: 0.7112 - val_accuracy: 0.8000
Epoch 16/30
283/283 [==============================] - 1s 5ms/step - loss: 0.2052 - accuracy: 0.9380 - val_loss: 0.7342 - val_accuracy: 0.7993
Epoch 17/30
283/283 [==============================] - 1s 5ms/step - loss: 0.1872 - accuracy: 0.9449 - val_loss: 0.6628 - val_accuracy: 0.8153
Epoch 18/30
283/283 [==============================] - 1s 5ms/step - loss: 0.1640 - accuracy: 0.9515 - val_loss: 0.7144 - val_accuracy: 0.8053
Epoch 19/30
283/283 [==============================] - 1s 5ms/step - loss: 0.1402 - accuracy: 0.9586 - val_loss: 0.6238 - val_accuracy: 0.8343
Epoch 20/30
283/283 [==============================] - 1s 5ms/step - loss: 0.1185 - accuracy: 0.9667 - val_loss: 0.7131 - val_accuracy: 0.8157
Epoch 21/30
283/283 [==============================] - 1s 5ms/step - loss: 0.1226 - accuracy: 0.9616 - val_loss: 0.7029 - val_accuracy: 0.8187
Epoch 22/30
283/283 [==============================] - 2s 5ms/step - loss: 0.1167 - accuracy: 0.9649 - val_loss: 0.6628 - val_accuracy: 0.8333
Epoch 23/30
283/283 [==============================] - 2s 6ms/step - loss: 0.0895 - accuracy: 0.9740 - val_loss: 0.6269 - val_accuracy: 0.8440
Epoch 24/30
283/283 [==============================] - 2s 6ms/step - loss: 0.1138 - accuracy: 0.9620 - val_loss: 0.7500 - val_accuracy: 0.8237
Epoch 25/30
283/283 [==============================] - 2s 6ms/step - loss: 0.0993 - accuracy: 0.9690 - val_loss: 0.6495 - val_accuracy: 0.8453
Epoch 26/30
283/283 [==============================] - 2s 6ms/step - loss: 0.0657 - accuracy: 0.9817 - val_loss: 0.6802 - val_accuracy: 0.8370
Epoch 27/30
283/283 [==============================] - 2s 6ms/step - loss: 0.0622 - accuracy: 0.9813 - val_loss: 0.7612 - val_accuracy: 0.8310
Epoch 28/30
283/283 [==============================] - 2s 6ms/step - loss: 0.0758 - accuracy: 0.9768 - val_loss: 0.8724 - val_accuracy: 0.7977
Epoch 29/30
283/283 [==============================] - 2s 6ms/step - loss: 0.0521 - accuracy: 0.9862 - val_loss: 0.6967 - val_accuracy: 0.8463
Epoch 30/30
283/283 [==============================] - 2s 6ms/step - loss: 0.0603 - accuracy: 0.9809 - val_loss: 0.7824 - val_accuracy: 0.8343

Loss on Test Dataset: 0.7183%
Accuracy on Test Dataset: 84.53%
CNN Error on Test Dataset: 15.47%

Rescaled & Data Augmentated Train Dataset

baseline_model_31_dataAug = Sequential()

# Convolutional Layer
baseline_model_31_dataAug.add(Conv2D(32, (3,3), input_shape=(31, 31, 1), activation='relu'))
# Pooling layer
baseline_model_31_dataAug.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
baseline_model_31_dataAug.add(Dropout(0.2))
# Convolutional Layer
baseline_model_31_dataAug.add(Conv2D(64, (3,3), activation='relu'))
# Pooling layer
baseline_model_31_dataAug.add(MaxPooling2D(pool_size=(2, 2)))

# Flatten the feature map
baseline_model_31_dataAug.add(Flatten())

# Fully connected layer
baseline_model_31_dataAug.add(Dense(128, activation='relu'))
baseline_model_31_dataAug.add(Dense(num_classes, activation='softmax'))

# Compile baseline_model_31_dataAug
baseline_model_31_dataAug.compile(loss='categorical_crossentropy', optimizer='adam', metrics=['accuracy'])

# print the baseline_model_31_dataAug summary
baseline_model_31_dataAug.summary()

Model: "sequential_15"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 conv2d_50 (Conv2D)          (None, 29, 29, 32)        320

 max_pooling2d_29 (MaxPoolin  (None, 14, 14, 32)       0
 g2D)

 dropout_32 (Dropout)        (None, 14, 14, 32)        0

 conv2d_51 (Conv2D)          (None, 12, 12, 64)        18496

 max_pooling2d_30 (MaxPoolin  (None, 6, 6, 64)         0
 g2D)

 flatten_11 (Flatten)        (None, 2304)              0

 dense_22 (Dense)            (None, 128)               295040

 dense_23 (Dense)            (None, 15)                1935

=================================================================
Total params: 315,791
Trainable params: 315,791
Non-trainable params: 0
_________________________________________________________________

# Fit model with original train dataset
history_baseline_model_31_dataAug = baseline_model_31_dataAug.fit(train_ds_31_dataAug_rescaled, validation_data = validation_ds_31_rescaled, epochs = 30, verbose = 1)

# save weights
baseline_model_31_dataAug.save_weights('baseline_model_31_dataAug_weights.h5')

# Summarize history for accuracy & loss
plotCompareMetrics(history_baseline_model_31_dataAug)

# Final evaluation of model
scores = baseline_model_31_dataAug.evaluate(test_ds_31_rescaled, verbose = 0)
print("Loss on Test Dataset: %.4f%%" % (scores[0]))
print("Accuracy on Test Dataset: %.2f%%" % (scores[1]*100))
print("CNN Error on Test Dataset: %.2f%%" % (100 - scores[1]*100))

Epoch 1/30
566/566 [==============================] - 4s 7ms/step - loss: 2.2004 - accuracy: 0.2873 - val_loss: 1.7515 - val_accuracy: 0.4263
Epoch 2/30
566/566 [==============================] - 4s 7ms/step - loss: 1.7217 - accuracy: 0.4421 - val_loss: 1.3903 - val_accuracy: 0.5513
Epoch 3/30
566/566 [==============================] - 4s 7ms/step - loss: 1.4917 - accuracy: 0.5178 - val_loss: 1.1122 - val_accuracy: 0.6280
Epoch 4/30
566/566 [==============================] - 4s 7ms/step - loss: 1.3155 - accuracy: 0.5714 - val_loss: 0.9217 - val_accuracy: 0.7077
Epoch 5/30
566/566 [==============================] - 4s 7ms/step - loss: 1.1978 - accuracy: 0.6182 - val_loss: 0.9351 - val_accuracy: 0.6910
Epoch 6/30
566/566 [==============================] - 4s 7ms/step - loss: 1.0979 - accuracy: 0.6483 - val_loss: 0.7806 - val_accuracy: 0.7547
Epoch 7/30
566/566 [==============================] - 4s 8ms/step - loss: 1.0193 - accuracy: 0.6763 - val_loss: 0.7221 - val_accuracy: 0.7750
Epoch 8/30
566/566 [==============================] - 4s 8ms/step - loss: 0.9675 - accuracy: 0.6954 - val_loss: 0.7385 - val_accuracy: 0.7730
Epoch 9/30
566/566 [==============================] - 4s 8ms/step - loss: 0.9367 - accuracy: 0.7099 - val_loss: 0.6627 - val_accuracy: 0.8047
Epoch 10/30
566/566 [==============================] - 5s 8ms/step - loss: 0.8479 - accuracy: 0.7296 - val_loss: 0.5880 - val_accuracy: 0.8177
Epoch 11/30
566/566 [==============================] - 4s 8ms/step - loss: 0.8279 - accuracy: 0.7381 - val_loss: 0.5756 - val_accuracy: 0.8200
Epoch 12/30
566/566 [==============================] - 5s 8ms/step - loss: 0.7763 - accuracy: 0.7527 - val_loss: 0.5417 - val_accuracy: 0.8373
Epoch 13/30
566/566 [==============================] - 5s 8ms/step - loss: 0.7471 - accuracy: 0.7635 - val_loss: 0.5505 - val_accuracy: 0.8350
Epoch 14/30
566/566 [==============================] - 4s 8ms/step - loss: 0.7090 - accuracy: 0.7782 - val_loss: 0.5203 - val_accuracy: 0.8447
Epoch 15/30
566/566 [==============================] - 4s 8ms/step - loss: 0.6923 - accuracy: 0.7827 - val_loss: 0.5433 - val_accuracy: 0.8407
Epoch 16/30
566/566 [==============================] - 4s 8ms/step - loss: 0.6439 - accuracy: 0.7967 - val_loss: 0.5184 - val_accuracy: 0.8527
Epoch 17/30
566/566 [==============================] - 5s 8ms/step - loss: 0.6132 - accuracy: 0.8076 - val_loss: 0.4861 - val_accuracy: 0.8547
Epoch 18/30
566/566 [==============================] - 5s 8ms/step - loss: 0.6025 - accuracy: 0.8114 - val_loss: 0.4935 - val_accuracy: 0.8547
Epoch 19/30
566/566 [==============================] - 4s 8ms/step - loss: 0.5865 - accuracy: 0.8187 - val_loss: 0.5245 - val_accuracy: 0.8530
Epoch 20/30
566/566 [==============================] - 4s 8ms/step - loss: 0.5527 - accuracy: 0.8287 - val_loss: 0.4952 - val_accuracy: 0.8647
Epoch 21/30
566/566 [==============================] - 5s 8ms/step - loss: 0.5427 - accuracy: 0.8321 - val_loss: 0.5036 - val_accuracy: 0.8557
Epoch 22/30
566/566 [==============================] - 5s 8ms/step - loss: 0.5160 - accuracy: 0.8412 - val_loss: 0.4962 - val_accuracy: 0.8700
Epoch 23/30
566/566 [==============================] - 4s 8ms/step - loss: 0.5067 - accuracy: 0.8423 - val_loss: 0.5006 - val_accuracy: 0.8607
Epoch 24/30
566/566 [==============================] - 5s 8ms/step - loss: 0.4924 - accuracy: 0.8496 - val_loss: 0.4872 - val_accuracy: 0.8690
Epoch 25/30
566/566 [==============================] - 5s 8ms/step - loss: 0.4596 - accuracy: 0.8568 - val_loss: 0.5000 - val_accuracy: 0.8690
Epoch 26/30
566/566 [==============================] - 5s 8ms/step - loss: 0.4454 - accuracy: 0.8608 - val_loss: 0.4921 - val_accuracy: 0.8633
Epoch 27/30
566/566 [==============================] - 4s 7ms/step - loss: 0.4455 - accuracy: 0.8624 - val_loss: 0.5014 - val_accuracy: 0.8687
Epoch 28/30
566/566 [==============================] - 4s 7ms/step - loss: 0.4437 - accuracy: 0.8612 - val_loss: 0.4912 - val_accuracy: 0.8687
Epoch 29/30
566/566 [==============================] - 4s 7ms/step - loss: 0.4139 - accuracy: 0.8692 - val_loss: 0.4652 - val_accuracy: 0.8767
Epoch 30/30
566/566 [==============================] - 4s 7ms/step - loss: 0.4023 - accuracy: 0.8732 - val_loss: 0.4804 - val_accuracy: 0.8730

Loss on Test Dataset: 0.3994%
Accuracy on Test Dataset: 89.13%
CNN Error on Test Dataset: 10.87%

Insights:

• Less overfitting with rescaled & data augmentated train dataset.
• The gap between the train & validation metrics is smaller for training with rescaled & data augmentated trian dataset.
• Test accuracy has improved as compared to using the original rescaled dataset.
• Train accuracy has decreased as compared to using the original rescaled dataset.

Hence, data augmentation has proven to be beneficial for 31x31 input size as it has improved the performance of the model by reducing overfitting by introducing more data to learn from to prevent generalization.

---

More Complex CNN Model

Larger CNN architecture with additional convolutional, max pooling, dropout, batch normalization layers and fully connected layers with more neurons.

As seen above, I will work towards improving both the train and test accuracies while reducing overfitting.

A. Input size: 128 by 128 pixels

1. First off, I will start by increasing Dropout form 0.2 to 0.4.

complex_model_128_dropOut = Sequential()

# Convolutional Layer
complex_model_128_dropOut.add(Conv2D(32, (3,3), input_shape=(128, 128, 1), activation='relu'))
# Pooling layer
complex_model_128_dropOut.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_128_dropOut.add(Dropout(0.4))
# Convolutional Layer
complex_model_128_dropOut.add(Conv2D(64, (3,3), activation='relu'))
# Pooling layer
complex_model_128_dropOut.add(MaxPooling2D(pool_size=(2, 2)))

# Flatten the feature map
complex_model_128_dropOut.add(Flatten())

# Fully connected layer
complex_model_128_dropOut.add(Dense(128, activation='relu'))
complex_model_128_dropOut.add(Dense(num_classes, activation='softmax'))

# Compile basedline_model_128
complex_model_128_dropOut.compile(loss='categorical_crossentropy', optimizer='adam', metrics=['accuracy'])

# print the basedline_model_128 summary
complex_model_128_dropOut.summary()

Model: "sequential_16"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 conv2d_52 (Conv2D)          (None, 126, 126, 32)      320

 max_pooling2d_31 (MaxPoolin  (None, 63, 63, 32)       0
 g2D)

 dropout_33 (Dropout)        (None, 63, 63, 32)        0

 conv2d_53 (Conv2D)          (None, 61, 61, 64)        18496

 max_pooling2d_32 (MaxPoolin  (None, 30, 30, 64)       0
 g2D)

 flatten_12 (Flatten)        (None, 57600)             0

 dense_24 (Dense)            (None, 128)               7372928

 dense_25 (Dense)            (None, 15)                1935

=================================================================
Total params: 7,393,679
Trainable params: 7,393,679
Non-trainable params: 0
_________________________________________________________________

# Fit model with rescaled & data augmentated train dataset
history_complex_model_128_dropOut = complex_model_128_dropOut.fit(train_ds_128_dataAug_rescaled, validation_data = validation_ds_128_rescaled, epochs = 30, verbose = 1)

# save weights
complex_model_128_dropOut.save_weights('complex_model_128_dropOut_weights.h5')

# Summarize history for accuracy & loss
plotCompareMetrics(history_complex_model_128_dropOut)

# Final evaluation of model
scores = complex_model_128_dropOut.evaluate(test_ds_128_rescaled, verbose = 0)
print("Loss on Test Dataset: %.4f%%" % (scores[0]))
print("Accuracy on Test Dataset: %.2f%%" % (scores[1]*100))
print("CNN Error on Test Dataset: %.2f%%" % (100 - scores[1]*100))

Epoch 1/30
566/566 [==============================] - 8s 12ms/step - loss: 2.2090 - accuracy: 0.3037 - val_loss: 1.4984 - val_accuracy: 0.5653
Epoch 2/30
566/566 [==============================] - 7s 13ms/step - loss: 1.3787 - accuracy: 0.5640 - val_loss: 0.9402 - val_accuracy: 0.7140
Epoch 3/30
566/566 [==============================] - 8s 13ms/step - loss: 1.0277 - accuracy: 0.6787 - val_loss: 0.7504 - val_accuracy: 0.7757
Epoch 4/30
566/566 [==============================] - 8s 14ms/step - loss: 0.8249 - accuracy: 0.7423 - val_loss: 0.6618 - val_accuracy: 0.8093
Epoch 5/30
566/566 [==============================] - 7s 13ms/step - loss: 0.6989 - accuracy: 0.7814 - val_loss: 0.6205 - val_accuracy: 0.8233
Epoch 6/30
566/566 [==============================] - 7s 12ms/step - loss: 0.6195 - accuracy: 0.8085 - val_loss: 0.5750 - val_accuracy: 0.8357
Epoch 7/30
566/566 [==============================] - 7s 13ms/step - loss: 0.5903 - accuracy: 0.8215 - val_loss: 0.4916 - val_accuracy: 0.8580
Epoch 8/30
566/566 [==============================] - 8s 13ms/step - loss: 0.5535 - accuracy: 0.8313 - val_loss: 0.4942 - val_accuracy: 0.8600
Epoch 9/30
566/566 [==============================] - 7s 13ms/step - loss: 0.5005 - accuracy: 0.8487 - val_loss: 0.4288 - val_accuracy: 0.8723
Epoch 10/30
566/566 [==============================] - 7s 12ms/step - loss: 0.4732 - accuracy: 0.8561 - val_loss: 0.4074 - val_accuracy: 0.8797
Epoch 11/30
566/566 [==============================] - 7s 12ms/step - loss: 0.4582 - accuracy: 0.8583 - val_loss: 0.4014 - val_accuracy: 0.8783
Epoch 12/30
566/566 [==============================] - 7s 12ms/step - loss: 0.4307 - accuracy: 0.8671 - val_loss: 0.4235 - val_accuracy: 0.8790
Epoch 13/30
566/566 [==============================] - 7s 12ms/step - loss: 0.4001 - accuracy: 0.8773 - val_loss: 0.4168 - val_accuracy: 0.8823
Epoch 14/30
566/566 [==============================] - 7s 12ms/step - loss: 0.3799 - accuracy: 0.8824 - val_loss: 0.3958 - val_accuracy: 0.8887
Epoch 15/30
566/566 [==============================] - 7s 12ms/step - loss: 0.3891 - accuracy: 0.8815 - val_loss: 0.3677 - val_accuracy: 0.8977
Epoch 16/30
566/566 [==============================] - 7s 12ms/step - loss: 0.3814 - accuracy: 0.8844 - val_loss: 0.3615 - val_accuracy: 0.8990
Epoch 17/30
566/566 [==============================] - 7s 12ms/step - loss: 0.3423 - accuracy: 0.8930 - val_loss: 0.3532 - val_accuracy: 0.9027
Epoch 18/30
566/566 [==============================] - 7s 12ms/step - loss: 0.3454 - accuracy: 0.8945 - val_loss: 0.3801 - val_accuracy: 0.8953
Epoch 19/30
566/566 [==============================] - 7s 12ms/step - loss: 0.3249 - accuracy: 0.9013 - val_loss: 0.3626 - val_accuracy: 0.9017
Epoch 20/30
566/566 [==============================] - 7s 13ms/step - loss: 0.2992 - accuracy: 0.9070 - val_loss: 0.3459 - val_accuracy: 0.9033
Epoch 21/30
566/566 [==============================] - 9s 15ms/step - loss: 0.3040 - accuracy: 0.9067 - val_loss: 0.3380 - val_accuracy: 0.9030
Epoch 22/30
566/566 [==============================] - 8s 13ms/step - loss: 0.3062 - accuracy: 0.9047 - val_loss: 0.3234 - val_accuracy: 0.9090
Epoch 23/30
566/566 [==============================] - 7s 12ms/step - loss: 0.2932 - accuracy: 0.9086 - val_loss: 0.3191 - val_accuracy: 0.9097
Epoch 24/30
566/566 [==============================] - 7s 12ms/step - loss: 0.2774 - accuracy: 0.9127 - val_loss: 0.3026 - val_accuracy: 0.9090
Epoch 25/30
566/566 [==============================] - 7s 13ms/step - loss: 0.2705 - accuracy: 0.9175 - val_loss: 0.3004 - val_accuracy: 0.9127
Epoch 26/30
566/566 [==============================] - 7s 12ms/step - loss: 0.2666 - accuracy: 0.9185 - val_loss: 0.3090 - val_accuracy: 0.9170
Epoch 27/30
566/566 [==============================] - 7s 13ms/step - loss: 0.2502 - accuracy: 0.9228 - val_loss: 0.2897 - val_accuracy: 0.9160
Epoch 28/30
566/566 [==============================] - 7s 12ms/step - loss: 0.2750 - accuracy: 0.9140 - val_loss: 0.2727 - val_accuracy: 0.9187
Epoch 29/30
566/566 [==============================] - 7s 12ms/step - loss: 0.2382 - accuracy: 0.9269 - val_loss: 0.2809 - val_accuracy: 0.9190
Epoch 30/30
566/566 [==============================] - 7s 12ms/step - loss: 0.2430 - accuracy: 0.9234 - val_loss: 0.2768 - val_accuracy: 0.9187

Loss on Test Dataset: 0.2564%
Accuracy on Test Dataset: 92.13%
CNN Error on Test Dataset: 7.87%

Insights:

Even though there is a minimum difference, we can tell that the dropout layer helps to reduce overfitting by a little bit, as the gap between the train and validation is slightly smaller.

The test accuray has increased while the train accuracy has decreased.

2. Now, I am going to add one more convolutional layer with more neurons and add dropout layers after each convolutional and dense layer. I will also be adding in one BatchNormalization layer.

I have chosen to set the number of filters to be increasing per Conv2D layer.

This is because the input the model receives is the raw pixel data, which is noisy, hence I will let the CNN first extract some relevant information from the noisy, "dirty" raw pixel data.

Once the useful features have been extracted, I will then make the CNN elaborate more complex abstractions on it.

Hence, as the network gets deeper, the number of filters increases.

Source: https://datascience.stackexchange.com/questions/55545/in-cnn-why-do-we-increase-the-number-of-filters-in-deeper-convolution-layers-fo

complex_model_128_2 = Sequential()

# Convolutional Layer
complex_model_128_2.add(Conv2D(32, (3,3), input_shape=(128, 128, 1), activation='relu'))
# Pooling layer
complex_model_128_2.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_128_2.add(Dropout(0.4))
# Convolutional Layer
complex_model_128_2.add(Conv2D(64, (3,3), activation='relu'))
# Pooling layer
complex_model_128_2.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_128_2.add(Dropout(0.4))
# Convolutional Layer
complex_model_128_2.add(Conv2D(128, (3,3), activation='relu'))
# Pooling layer
complex_model_128_2.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_128_2.add(Dropout(0.4))

# Flatten the feature map
complex_model_128_2.add(Flatten())

# Fully connected layer
complex_model_128_2.add(Dense(128, activation='relu'))
# Batch Normalization layer
complex_model_128_2.add(BatchNormalization())
# Dropout layer
complex_model_128_2.add(Dropout(0.4))
# Outout layer
complex_model_128_2.add(Dense(num_classes, activation='softmax'))

# Compile basedline_model_128
complex_model_128_2.compile(loss='categorical_crossentropy', optimizer='adam', metrics=['accuracy'])

# print the basedline_model_128 summary
complex_model_128_2.summary()

Model: "sequential_3"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 conv2d_2 (Conv2D)           (None, 126, 126, 32)      320

 max_pooling2d_2 (MaxPooling  (None, 63, 63, 32)       0
 2D)

 dropout_1 (Dropout)         (None, 63, 63, 32)        0

 conv2d_3 (Conv2D)           (None, 61, 61, 64)        18496

 max_pooling2d_3 (MaxPooling  (None, 30, 30, 64)       0
 2D)

 dropout_2 (Dropout)         (None, 30, 30, 64)        0

 conv2d_4 (Conv2D)           (None, 28, 28, 128)       73856

 max_pooling2d_4 (MaxPooling  (None, 14, 14, 128)      0
 2D)

 dropout_3 (Dropout)         (None, 14, 14, 128)       0

 flatten_1 (Flatten)         (None, 25088)             0

 dense_2 (Dense)             (None, 128)               3211392

 batch_normalization (BatchN  (None, 128)              512
 ormalization)

 dropout_4 (Dropout)         (None, 128)               0

 dense_3 (Dense)             (None, 15)                1935

=================================================================
Total params: 3,306,511
Trainable params: 3,306,255
Non-trainable params: 256
_________________________________________________________________

# Fit model with rescaled & data augmented train dataset
history_complex_model_128_2 = complex_model_128_2.fit(train_ds_128_dataAug_rescaled, validation_data = validation_ds_128_rescaled, epochs = 30, verbose = 1)

# Save model weights
complex_model_128_2.save_weights('complex_model_128_2_weights.h5')

# Summarize history for accuracy & loss
plotCompareMetrics(history_complex_model_128_2)

# Final evaluation of model
scores = complex_model_128_2.evaluate(test_ds_128_rescaled, verbose = 0)
print("Loss on Test Dataset: %.4f%%" % (scores[0]))
print("Accuracy on Test Dataset: %.2f%%" % (scores[1]*100))
print("CNN Error on Test Dataset: %.2f%%" % (100 - scores[1]*100))

Epoch 1/30
566/566 [==============================] - 12s 19ms/step - loss: 2.2059 - accuracy: 0.2933 - val_loss: 3.3519 - val_accuracy: 0.1073
Epoch 2/30
566/566 [==============================] - 8s 14ms/step - loss: 1.5971 - accuracy: 0.4843 - val_loss: 3.3179 - val_accuracy: 0.1833
Epoch 3/30
566/566 [==============================] - 8s 13ms/step - loss: 1.3436 - accuracy: 0.5652 - val_loss: 1.6356 - val_accuracy: 0.4847
Epoch 4/30
566/566 [==============================] - 7s 13ms/step - loss: 1.1794 - accuracy: 0.6272 - val_loss: 2.0793 - val_accuracy: 0.3727
Epoch 5/30
566/566 [==============================] - 7s 13ms/step - loss: 0.9997 - accuracy: 0.6854 - val_loss: 1.1398 - val_accuracy: 0.6553
Epoch 6/30
566/566 [==============================] - 7s 13ms/step - loss: 0.8999 - accuracy: 0.7185 - val_loss: 1.1622 - val_accuracy: 0.6100
Epoch 7/30
566/566 [==============================] - 7s 13ms/step - loss: 0.7996 - accuracy: 0.7500 - val_loss: 1.3758 - val_accuracy: 0.5733
Epoch 8/30
566/566 [==============================] - 7s 13ms/step - loss: 0.7531 - accuracy: 0.7627 - val_loss: 0.7433 - val_accuracy: 0.7620
Epoch 9/30
566/566 [==============================] - 7s 13ms/step - loss: 0.6444 - accuracy: 0.7972 - val_loss: 1.0167 - val_accuracy: 0.6910
Epoch 10/30
566/566 [==============================] - 7s 13ms/step - loss: 0.5893 - accuracy: 0.8166 - val_loss: 0.7508 - val_accuracy: 0.7650
Epoch 11/30
566/566 [==============================] - 7s 13ms/step - loss: 0.5739 - accuracy: 0.8192 - val_loss: 0.5496 - val_accuracy: 0.8203
Epoch 12/30
566/566 [==============================] - 7s 13ms/step - loss: 0.5258 - accuracy: 0.8358 - val_loss: 0.4680 - val_accuracy: 0.8503
Epoch 13/30
566/566 [==============================] - 8s 13ms/step - loss: 0.5198 - accuracy: 0.8343 - val_loss: 0.3775 - val_accuracy: 0.8910
Epoch 14/30
566/566 [==============================] - 7s 13ms/step - loss: 0.4893 - accuracy: 0.8489 - val_loss: 0.6831 - val_accuracy: 0.7843
Epoch 15/30
566/566 [==============================] - 7s 13ms/step - loss: 0.4621 - accuracy: 0.8555 - val_loss: 0.4789 - val_accuracy: 0.8480
Epoch 16/30
566/566 [==============================] - 7s 13ms/step - loss: 0.4293 - accuracy: 0.8686 - val_loss: 0.4378 - val_accuracy: 0.8627
Epoch 17/30
566/566 [==============================] - 7s 13ms/step - loss: 0.4225 - accuracy: 0.8693 - val_loss: 0.6247 - val_accuracy: 0.8017
Epoch 18/30
566/566 [==============================] - 7s 13ms/step - loss: 0.3945 - accuracy: 0.8766 - val_loss: 0.4573 - val_accuracy: 0.8633
Epoch 19/30
566/566 [==============================] - 8s 14ms/step - loss: 0.3888 - accuracy: 0.8777 - val_loss: 0.2835 - val_accuracy: 0.9123
Epoch 20/30
566/566 [==============================] - 8s 13ms/step - loss: 0.3690 - accuracy: 0.8825 - val_loss: 0.3411 - val_accuracy: 0.8983
Epoch 21/30
566/566 [==============================] - 8s 13ms/step - loss: 0.3824 - accuracy: 0.8820 - val_loss: 0.3616 - val_accuracy: 0.8957
Epoch 22/30
566/566 [==============================] - 7s 13ms/step - loss: 0.3557 - accuracy: 0.8902 - val_loss: 0.4360 - val_accuracy: 0.8650
Epoch 23/30
566/566 [==============================] - 26s 47ms/step - loss: 0.3437 - accuracy: 0.8926 - val_loss: 0.4108 - val_accuracy: 0.8700
Epoch 24/30
566/566 [==============================] - 43s 77ms/step - loss: 0.3397 - accuracy: 0.8970 - val_loss: 0.2360 - val_accuracy: 0.9270
Epoch 25/30
566/566 [==============================] - 16s 28ms/step - loss: 0.3188 - accuracy: 0.8989 - val_loss: 0.3468 - val_accuracy: 0.8923
Epoch 26/30
566/566 [==============================] - 17s 30ms/step - loss: 0.3069 - accuracy: 0.9060 - val_loss: 0.2474 - val_accuracy: 0.9250
Epoch 27/30
566/566 [==============================] - 16s 28ms/step - loss: 0.3069 - accuracy: 0.9036 - val_loss: 0.3043 - val_accuracy: 0.9073
Epoch 28/30
566/566 [==============================] - 16s 28ms/step - loss: 0.2982 - accuracy: 0.9074 - val_loss: 0.1937 - val_accuracy: 0.9420
Epoch 29/30
566/566 [==============================] - 18s 31ms/step - loss: 0.2864 - accuracy: 0.9123 - val_loss: 0.2498 - val_accuracy: 0.9287
Epoch 30/30
566/566 [==============================] - 17s 31ms/step - loss: 0.2784 - accuracy: 0.9115 - val_loss: 0.2834 - val_accuracy: 0.9117

Loss on Test Dataset: 0.2656%
Accuracy on Test Dataset: 91.40%
CNN Error on Test Dataset: 8.60%

3. Next, I am going to make the model even more complex by adding back to back Conv2D layers.

I have taken inspiration from the the architecture of the VGG16 model. I have adjust the architecture to suit my avaiable resources and the dataset.

complex_model_128_3 = Sequential()

# Convolutional Layer
complex_model_128_3.add(Conv2D(32, (3,3), input_shape=(128, 128, 1), activation='relu'))
# Convolutional Layer
complex_model_128_3.add(Conv2D(32, (3,3), activation='relu'))
# Pooling layer
complex_model_128_3.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_128_3.add(Dropout(0.4))
# Convolutional Layer
complex_model_128_3.add(Conv2D(64, (3,3), activation='relu'))
# Convolutional Layer
complex_model_128_3.add(Conv2D(64, (3,3), activation='relu'))
# Pooling layer
complex_model_128_3.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_128_3.add(Dropout(0.4))
# Convolutional Layer
complex_model_128_3.add(Conv2D(128, (3,3), activation='relu'))
# Convolutional Layer
complex_model_128_3.add(Conv2D(128, (3,3), activation='relu'))
# Pooling layer
complex_model_128_3.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_128_3.add(Dropout(0.4))

# Flatten the feature map
complex_model_128_3.add(Flatten())

# Fully connected layer
complex_model_128_3.add(Dense(128, activation='relu'))
# Batch Normalization layer
complex_model_128_3.add(BatchNormalization())
# Dropout layer
complex_model_128_3.add(Dropout(0.4))
# Outout layer
complex_model_128_3.add(Dense(num_classes, activation='softmax'))

# Compile basedline_model_128
complex_model_128_3.compile(loss='categorical_crossentropy', optimizer='adam', metrics=['accuracy'])

# print the basedline_model_128 summary
complex_model_128_3.summary()

Model: "sequential_4"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 conv2d_5 (Conv2D)           (None, 126, 126, 32)      320

 conv2d_6 (Conv2D)           (None, 124, 124, 32)      9248

 max_pooling2d_5 (MaxPooling  (None, 62, 62, 32)       0
 2D)

 dropout_5 (Dropout)         (None, 62, 62, 32)        0

 conv2d_7 (Conv2D)           (None, 60, 60, 64)        18496

 conv2d_8 (Conv2D)           (None, 58, 58, 64)        36928

 max_pooling2d_6 (MaxPooling  (None, 29, 29, 64)       0
 2D)

 dropout_6 (Dropout)         (None, 29, 29, 64)        0

 conv2d_9 (Conv2D)           (None, 27, 27, 128)       73856

 conv2d_10 (Conv2D)          (None, 25, 25, 128)       147584

 max_pooling2d_7 (MaxPooling  (None, 12, 12, 128)      0
 2D)

 dropout_7 (Dropout)         (None, 12, 12, 128)       0

 flatten_2 (Flatten)         (None, 18432)             0

 dense_4 (Dense)             (None, 128)               2359424

 batch_normalization_1 (Batc  (None, 128)              512
 hNormalization)

 dropout_8 (Dropout)         (None, 128)               0

 dense_5 (Dense)             (None, 15)                1935

=================================================================
Total params: 2,648,303
Trainable params: 2,648,047
Non-trainable params: 256
_________________________________________________________________

# Fit model with rescaled & data augmented train dataset
history_complex_model_128_3 = complex_model_128_3.fit(train_ds_128_dataAug_rescaled, validation_data = validation_ds_128_rescaled, epochs = 30, verbose = 1)

# Save model weights
complex_model_128_3.save_weights('complex_model_128_3_weights.h5')

# Summarize history for accuracy & loss
plotCompareMetrics(history_complex_model_128_3)

# Final evaluation of model
scores = complex_model_128_3.evaluate(test_ds_128_rescaled, verbose = 0)
print("Loss on Test Dataset: %.4f%%" % (scores[0]))
print("Accuracy on Test Dataset: %.2f%%" % (scores[1]*100))
print("CNN Error on Test Dataset: %.2f%%" % (100 - scores[1]*100))

Epoch 1/30
566/566 [==============================] - 35s 57ms/step - loss: 2.3749 - accuracy: 0.2401 - val_loss: 2.7497 - val_accuracy: 0.1683
Epoch 2/30
566/566 [==============================] - 31s 55ms/step - loss: 1.9504 - accuracy: 0.3744 - val_loss: 2.5912 - val_accuracy: 0.2793
Epoch 3/30
566/566 [==============================] - 30s 53ms/step - loss: 1.5189 - accuracy: 0.5158 - val_loss: 1.1851 - val_accuracy: 0.6123
Epoch 4/30
566/566 [==============================] - 13s 23ms/step - loss: 1.2033 - accuracy: 0.6171 - val_loss: 1.0343 - val_accuracy: 0.6600
Epoch 5/30
566/566 [==============================] - 12s 21ms/step - loss: 1.1116 - accuracy: 0.6375 - val_loss: 0.9513 - val_accuracy: 0.6923
Epoch 6/30
566/566 [==============================] - 12s 21ms/step - loss: 0.8952 - accuracy: 0.7142 - val_loss: 0.9308 - val_accuracy: 0.6930
Epoch 7/30
566/566 [==============================] - 12s 22ms/step - loss: 0.8056 - accuracy: 0.7458 - val_loss: 0.9341 - val_accuracy: 0.7027
Epoch 8/30
566/566 [==============================] - 12s 21ms/step - loss: 0.6900 - accuracy: 0.7822 - val_loss: 0.6289 - val_accuracy: 0.7903
Epoch 9/30
566/566 [==============================] - 14s 25ms/step - loss: 0.6142 - accuracy: 0.8048 - val_loss: 0.5164 - val_accuracy: 0.8323
Epoch 10/30
566/566 [==============================] - 12s 21ms/step - loss: 0.5583 - accuracy: 0.8239 - val_loss: 0.5578 - val_accuracy: 0.8590
Epoch 11/30
566/566 [==============================] - 12s 21ms/step - loss: 0.5249 - accuracy: 0.8348 - val_loss: 0.4202 - val_accuracy: 0.8600
Epoch 12/30
566/566 [==============================] - 12s 21ms/step - loss: 0.5203 - accuracy: 0.8365 - val_loss: 0.4055 - val_accuracy: 0.8723
Epoch 13/30
566/566 [==============================] - 13s 23ms/step - loss: 0.4385 - accuracy: 0.8631 - val_loss: 0.3787 - val_accuracy: 0.8757
Epoch 14/30
566/566 [==============================] - 12s 21ms/step - loss: 0.4060 - accuracy: 0.8715 - val_loss: 0.3249 - val_accuracy: 0.8947
Epoch 15/30
566/566 [==============================] - 12s 21ms/step - loss: 0.3915 - accuracy: 0.8758 - val_loss: 0.5264 - val_accuracy: 0.8310
Epoch 16/30
566/566 [==============================] - 12s 22ms/step - loss: 0.3691 - accuracy: 0.8830 - val_loss: 0.2513 - val_accuracy: 0.9123
Epoch 17/30
566/566 [==============================] - 13s 22ms/step - loss: 0.3158 - accuracy: 0.9005 - val_loss: 0.2535 - val_accuracy: 0.9180
Epoch 18/30
566/566 [==============================] - 12s 22ms/step - loss: 0.3272 - accuracy: 0.8968 - val_loss: 0.2549 - val_accuracy: 0.9143
Epoch 19/30
566/566 [==============================] - 12s 21ms/step - loss: 0.3036 - accuracy: 0.9031 - val_loss: 0.3393 - val_accuracy: 0.8853
Epoch 20/30
566/566 [==============================] - 12s 21ms/step - loss: 0.2885 - accuracy: 0.9082 - val_loss: 0.3260 - val_accuracy: 0.8967
Epoch 21/30
566/566 [==============================] - 12s 21ms/step - loss: 0.2719 - accuracy: 0.9129 - val_loss: 0.3263 - val_accuracy: 0.8917
Epoch 22/30
566/566 [==============================] - 12s 22ms/step - loss: 0.2784 - accuracy: 0.9130 - val_loss: 0.2367 - val_accuracy: 0.9287
Epoch 23/30
566/566 [==============================] - 12s 21ms/step - loss: 0.2738 - accuracy: 0.9160 - val_loss: 0.3215 - val_accuracy: 0.9010
Epoch 24/30
566/566 [==============================] - 12s 21ms/step - loss: 0.2438 - accuracy: 0.9237 - val_loss: 0.3657 - val_accuracy: 0.8823
Epoch 25/30
566/566 [==============================] - 12s 21ms/step - loss: 0.2453 - accuracy: 0.9246 - val_loss: 0.2257 - val_accuracy: 0.9320
Epoch 26/30
566/566 [==============================] - 12s 21ms/step - loss: 0.2137 - accuracy: 0.9329 - val_loss: 0.2612 - val_accuracy: 0.9207
Epoch 27/30
566/566 [==============================] - 12s 21ms/step - loss: 0.2332 - accuracy: 0.9252 - val_loss: 0.2583 - val_accuracy: 0.9230
Epoch 28/30
566/566 [==============================] - 12s 21ms/step - loss: 0.2236 - accuracy: 0.9286 - val_loss: 0.3117 - val_accuracy: 0.9097
Epoch 29/30
566/566 [==============================] - 12s 21ms/step - loss: 0.2091 - accuracy: 0.9348 - val_loss: 0.2082 - val_accuracy: 0.9340
Epoch 30/30
566/566 [==============================] - 12s 21ms/step - loss: 0.2011 - accuracy: 0.9374 - val_loss: 0.1849 - val_accuracy: 0.9463

Loss on Test Dataset: 0.2089%
Accuracy on Test Dataset: 94.37%
CNN Error on Test Dataset: 5.63%

Insights:

• After adding back to back Conv2D layers, the model appears to be more stable.
• The test accuracy has also increased.

I will select this complex model as my best model for the 128 x 128 input size model.

B. Input size: 31 by 31 pixels

1. Similarly, I will investigate if increasing the dropout size benefits the model.

complex_model_31_dropOut = Sequential()

# Convolutional Layer
complex_model_31_dropOut.add(Conv2D(32, (3,3), input_shape=(31, 31, 1), activation='relu'))
# Pooling layer
complex_model_31_dropOut.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_31_dropOut.add(Dropout(0.4))
# Convolutional Layer
complex_model_31_dropOut.add(Conv2D(64, (3,3), activation='relu'))
# Pooling layer
complex_model_31_dropOut.add(MaxPooling2D(pool_size=(2, 2)))

# Flatten the feature map
complex_model_31_dropOut.add(Flatten())

# Fully connected layer
complex_model_31_dropOut.add(Dense(128, activation='relu'))
complex_model_31_dropOut.add(Dense(num_classes, activation='softmax'))

# Compile complex_model_31_dropOut
complex_model_31_dropOut.compile(loss='categorical_crossentropy', optimizer='adam', metrics=['accuracy'])

# print the complex_model_31_dropOut summary
complex_model_31_dropOut.summary()

Model: "sequential_17"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 conv2d_54 (Conv2D)          (None, 29, 29, 32)        320

 max_pooling2d_33 (MaxPoolin  (None, 14, 14, 32)       0
 g2D)

 dropout_34 (Dropout)        (None, 14, 14, 32)        0

 conv2d_55 (Conv2D)          (None, 12, 12, 64)        18496

 max_pooling2d_34 (MaxPoolin  (None, 6, 6, 64)         0
 g2D)

 flatten_13 (Flatten)        (None, 2304)              0

 dense_26 (Dense)            (None, 128)               295040

 dense_27 (Dense)            (None, 15)                1935

=================================================================
Total params: 315,791
Trainable params: 315,791
Non-trainable params: 0
_________________________________________________________________

# Fit model with rescaled & data augmented train dataset
history_complex_model_31_dropOut = complex_model_31_dropOut.fit(train_ds_31_dataAug_rescaled, validation_data = validation_ds_31_rescaled, epochs = 30, verbose = 1)

# Save model weights
complex_model_31_dropOut.save_weights('complex_model_31_dropOut_weights.h5')

# Summarize history for accuracy & loss
plotCompareMetrics(history_complex_model_31_dropOut)

# Final evaluation of model
scores = complex_model_31_dropOut.evaluate(test_ds_31_rescaled, verbose = 0)
print("Loss on Test Dataset: %.4f%%" % (scores[0]))
print("Accuracy on Test Dataset: %.2f%%" % (scores[1]*100))
print("CNN Error on Test Dataset: %.2f%%" % (100 - scores[1]*100))

Epoch 1/30
566/566 [==============================] - 4s 7ms/step - loss: 2.2391 - accuracy: 0.2743 - val_loss: 1.7968 - val_accuracy: 0.4267
Epoch 2/30
566/566 [==============================] - 4s 8ms/step - loss: 1.7393 - accuracy: 0.4361 - val_loss: 1.3075 - val_accuracy: 0.5803
Epoch 3/30
566/566 [==============================] - 4s 7ms/step - loss: 1.4565 - accuracy: 0.5305 - val_loss: 1.0431 - val_accuracy: 0.6810
Epoch 4/30
566/566 [==============================] - 4s 7ms/step - loss: 1.2941 - accuracy: 0.5858 - val_loss: 0.9232 - val_accuracy: 0.7083
Epoch 5/30
566/566 [==============================] - 4s 7ms/step - loss: 1.1802 - accuracy: 0.6228 - val_loss: 0.8389 - val_accuracy: 0.7410
Epoch 6/30
566/566 [==============================] - 4s 7ms/step - loss: 1.0929 - accuracy: 0.6470 - val_loss: 0.7679 - val_accuracy: 0.7633
Epoch 7/30
566/566 [==============================] - 4s 7ms/step - loss: 1.0130 - accuracy: 0.6740 - val_loss: 0.6973 - val_accuracy: 0.7797
Epoch 8/30
566/566 [==============================] - 4s 7ms/step - loss: 0.9452 - accuracy: 0.7015 - val_loss: 0.6245 - val_accuracy: 0.8027
Epoch 9/30
566/566 [==============================] - 4s 7ms/step - loss: 0.8889 - accuracy: 0.7169 - val_loss: 0.6102 - val_accuracy: 0.8063
Epoch 10/30
566/566 [==============================] - 5s 8ms/step - loss: 0.8275 - accuracy: 0.7352 - val_loss: 0.5724 - val_accuracy: 0.8210
Epoch 11/30
566/566 [==============================] - 4s 7ms/step - loss: 0.7926 - accuracy: 0.7494 - val_loss: 0.5469 - val_accuracy: 0.8297
Epoch 12/30
566/566 [==============================] - 4s 7ms/step - loss: 0.7577 - accuracy: 0.7616 - val_loss: 0.5030 - val_accuracy: 0.8420
Epoch 13/30
566/566 [==============================] - 4s 7ms/step - loss: 0.7358 - accuracy: 0.7675 - val_loss: 0.4844 - val_accuracy: 0.8490
Epoch 14/30
566/566 [==============================] - 4s 7ms/step - loss: 0.6839 - accuracy: 0.7831 - val_loss: 0.4894 - val_accuracy: 0.8463
Epoch 15/30
566/566 [==============================] - 4s 7ms/step - loss: 0.6706 - accuracy: 0.7903 - val_loss: 0.4996 - val_accuracy: 0.8473
Epoch 16/30
566/566 [==============================] - 4s 7ms/step - loss: 0.6460 - accuracy: 0.7971 - val_loss: 0.4907 - val_accuracy: 0.8483
Epoch 17/30
566/566 [==============================] - 4s 7ms/step - loss: 0.6198 - accuracy: 0.8058 - val_loss: 0.4506 - val_accuracy: 0.8643
Epoch 18/30
566/566 [==============================] - 4s 7ms/step - loss: 0.5999 - accuracy: 0.8110 - val_loss: 0.4408 - val_accuracy: 0.8640
Epoch 19/30
566/566 [==============================] - 4s 7ms/step - loss: 0.5564 - accuracy: 0.8260 - val_loss: 0.4446 - val_accuracy: 0.8667
Epoch 20/30
566/566 [==============================] - 4s 7ms/step - loss: 0.5534 - accuracy: 0.8241 - val_loss: 0.4680 - val_accuracy: 0.8623
Epoch 21/30
566/566 [==============================] - 4s 7ms/step - loss: 0.5489 - accuracy: 0.8274 - val_loss: 0.4386 - val_accuracy: 0.8667
Epoch 22/30
566/566 [==============================] - 4s 8ms/step - loss: 0.5429 - accuracy: 0.8314 - val_loss: 0.5105 - val_accuracy: 0.8533
Epoch 23/30
566/566 [==============================] - 4s 8ms/step - loss: 0.5080 - accuracy: 0.8368 - val_loss: 0.4646 - val_accuracy: 0.8683
Epoch 24/30
566/566 [==============================] - 4s 8ms/step - loss: 0.4999 - accuracy: 0.8454 - val_loss: 0.4246 - val_accuracy: 0.8760
Epoch 25/30
566/566 [==============================] - 4s 7ms/step - loss: 0.5006 - accuracy: 0.8422 - val_loss: 0.4406 - val_accuracy: 0.8703
Epoch 26/30
566/566 [==============================] - 4s 7ms/step - loss: 0.4724 - accuracy: 0.8522 - val_loss: 0.4100 - val_accuracy: 0.8823
Epoch 27/30
566/566 [==============================] - 4s 8ms/step - loss: 0.4709 - accuracy: 0.8495 - val_loss: 0.4318 - val_accuracy: 0.8740
Epoch 28/30
566/566 [==============================] - 5s 8ms/step - loss: 0.4591 - accuracy: 0.8563 - val_loss: 0.4210 - val_accuracy: 0.8823
Epoch 29/30
566/566 [==============================] - 4s 7ms/step - loss: 0.4469 - accuracy: 0.8573 - val_loss: 0.4336 - val_accuracy: 0.8757
Epoch 30/30
566/566 [==============================] - 4s 7ms/step - loss: 0.4425 - accuracy: 0.8609 - val_loss: 0.4205 - val_accuracy: 0.8807

Loss on Test Dataset: 0.3994%
Accuracy on Test Dataset: 89.43%
CNN Error on Test Dataset: 10.57%

Increasing the dropout from 0.2 to 0.4 does slighlty improve the performance of the model.

2. Now, I am going to add one more convolutional layer with more neurons and add dropout layers after each convolutional and dense layer. I will also be adding in one BatchNormalization layer.

complex_model_31_2 = Sequential()

# Convolutional Layer
complex_model_31_2.add(Conv2D(32, (3,3), input_shape=(31, 31, 1), activation='relu'))
# Pooling layer
complex_model_31_2.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_31_2.add(Dropout(0.2))
# Convolutional Layer
complex_model_31_2.add(Conv2D(64, (3,3), activation='relu'))
# Pooling layer
complex_model_31_2.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_31_2.add(Dropout(0.3))
# Convolutional Layer
complex_model_31_2.add(Conv2D(128, (3,3), activation='relu'))
# Pooling layer
complex_model_31_2.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_31_2.add(Dropout(0.2))

# Flatten the feature map
complex_model_31_2.add(Flatten())

# Fully connected layer
complex_model_31_2.add(Dense(128, activation='relu'))
# Batch Normalization layer
complex_model_31_2.add(BatchNormalization())
# Dropout layer
complex_model_31_2.add(Dropout(0.2))
# Output layer
complex_model_31_2.add(Dense(num_classes, activation='softmax'))

# Compile complex_model_31_2
complex_model_31_2.compile(loss='categorical_crossentropy', optimizer='adam', metrics=['accuracy'])

# print the complex_model_31_2 summary
complex_model_31_2.summary()

Model: "sequential_3"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 conv2d_2 (Conv2D)           (None, 29, 29, 32)        320

 max_pooling2d_2 (MaxPooling  (None, 14, 14, 32)       0
 2D)

 dropout_3 (Dropout)         (None, 14, 14, 32)        0

 conv2d_3 (Conv2D)           (None, 12, 12, 64)        18496

 max_pooling2d_3 (MaxPooling  (None, 6, 6, 64)         0
 2D)

 dropout_4 (Dropout)         (None, 6, 6, 64)          0

 conv2d_4 (Conv2D)           (None, 4, 4, 128)         73856

 max_pooling2d_4 (MaxPooling  (None, 2, 2, 128)        0
 2D)

 dropout_5 (Dropout)         (None, 2, 2, 128)         0

 flatten_1 (Flatten)         (None, 512)               0

 dense_2 (Dense)             (None, 128)               65664

 batch_normalization_1 (Batc  (None, 128)              512
 hNormalization)

 dropout_6 (Dropout)         (None, 128)               0

 dense_3 (Dense)             (None, 15)                1935

=================================================================
Total params: 160,783
Trainable params: 160,527
Non-trainable params: 256
_________________________________________________________________

# Fit model with rescaled & data augmented train dataset
history_complex_model_31_2 = complex_model_31_2.fit(train_ds_31_dataAug_rescaled, validation_data = validation_ds_31_rescaled, epochs = 30, verbose = 1)

# Save model weights
complex_model_31_2.save_weights('complex_model_31_2_weights.h5')

# Summarize history for accuracy & loss
plotCompareMetrics(history_complex_model_31_2)

# Final evaluation of model
scores = complex_model_31_2.evaluate(test_ds_31_rescaled, verbose = 0)
print("Loss on Test Dataset: %.4f%%" % (scores[0]))
print("Accuracy on Test Dataset: %.2f%%" % (scores[1]*100))
print("CNN Error on Test Dataset: %.2f%%" % (100 - scores[1]*100))

Epoch 1/30
566/566 [==============================] - 8s 12ms/step - loss: 2.1889 - accuracy: 0.2921 - val_loss: 1.8665 - val_accuracy: 0.4590
Epoch 2/30
566/566 [==============================] - 7s 12ms/step - loss: 1.7751 - accuracy: 0.4182 - val_loss: 1.3743 - val_accuracy: 0.5563
Epoch 3/30
566/566 [==============================] - 7s 12ms/step - loss: 1.5469 - accuracy: 0.4930 - val_loss: 1.1487 - val_accuracy: 0.6267
Epoch 4/30
566/566 [==============================] - 6s 11ms/step - loss: 1.3922 - accuracy: 0.5460 - val_loss: 0.9465 - val_accuracy: 0.6883
Epoch 5/30
566/566 [==============================] - 6s 11ms/step - loss: 1.3029 - accuracy: 0.5828 - val_loss: 0.7717 - val_accuracy: 0.7637
Epoch 6/30
566/566 [==============================] - 7s 12ms/step - loss: 1.2067 - accuracy: 0.6086 - val_loss: 0.7078 - val_accuracy: 0.7687
Epoch 7/30
566/566 [==============================] - 6s 11ms/step - loss: 1.1340 - accuracy: 0.6319 - val_loss: 0.6889 - val_accuracy: 0.7760
Epoch 8/30
566/566 [==============================] - 6s 10ms/step - loss: 1.0800 - accuracy: 0.6506 - val_loss: 0.5745 - val_accuracy: 0.8183
Epoch 9/30
566/566 [==============================] - 6s 11ms/step - loss: 1.0332 - accuracy: 0.6661 - val_loss: 0.5281 - val_accuracy: 0.8310
Epoch 10/30
566/566 [==============================] - 6s 10ms/step - loss: 0.9913 - accuracy: 0.6822 - val_loss: 0.5395 - val_accuracy: 0.8273
Epoch 11/30
566/566 [==============================] - 6s 11ms/step - loss: 0.9668 - accuracy: 0.6905 - val_loss: 0.4412 - val_accuracy: 0.8620
Epoch 12/30
566/566 [==============================] - 7s 11ms/step - loss: 0.9255 - accuracy: 0.6990 - val_loss: 0.4091 - val_accuracy: 0.8733
Epoch 13/30
566/566 [==============================] - 6s 11ms/step - loss: 0.9145 - accuracy: 0.7055 - val_loss: 0.4742 - val_accuracy: 0.8510
Epoch 14/30
566/566 [==============================] - 6s 11ms/step - loss: 0.8898 - accuracy: 0.7179 - val_loss: 0.3916 - val_accuracy: 0.8807
Epoch 15/30
566/566 [==============================] - 7s 12ms/step - loss: 0.8709 - accuracy: 0.7213 - val_loss: 0.4116 - val_accuracy: 0.8650
Epoch 16/30
566/566 [==============================] - 6s 10ms/step - loss: 0.8316 - accuracy: 0.7313 - val_loss: 0.4238 - val_accuracy: 0.8643
Epoch 17/30
566/566 [==============================] - 7s 13ms/step - loss: 0.8346 - accuracy: 0.7312 - val_loss: 0.3367 - val_accuracy: 0.8977
Epoch 18/30
566/566 [==============================] - 6s 10ms/step - loss: 0.8124 - accuracy: 0.7402 - val_loss: 0.3624 - val_accuracy: 0.8860
Epoch 19/30
566/566 [==============================] - 6s 10ms/step - loss: 0.8035 - accuracy: 0.7424 - val_loss: 0.3233 - val_accuracy: 0.9040
Epoch 20/30
566/566 [==============================] - 6s 10ms/step - loss: 0.7860 - accuracy: 0.7493 - val_loss: 0.3222 - val_accuracy: 0.9030
Epoch 21/30
566/566 [==============================] - 6s 11ms/step - loss: 0.7619 - accuracy: 0.7549 - val_loss: 0.3551 - val_accuracy: 0.8850
Epoch 22/30
566/566 [==============================] - 6s 10ms/step - loss: 0.7776 - accuracy: 0.7534 - val_loss: 0.3058 - val_accuracy: 0.9020
Epoch 23/30
566/566 [==============================] - 5s 9ms/step - loss: 0.7629 - accuracy: 0.7544 - val_loss: 0.3133 - val_accuracy: 0.9047
Epoch 24/30
566/566 [==============================] - 6s 11ms/step - loss: 0.7341 - accuracy: 0.7650 - val_loss: 0.3187 - val_accuracy: 0.9017
Epoch 25/30
566/566 [==============================] - 6s 10ms/step - loss: 0.7207 - accuracy: 0.7682 - val_loss: 0.3004 - val_accuracy: 0.9037
Epoch 26/30
566/566 [==============================] - 6s 10ms/step - loss: 0.7095 - accuracy: 0.7718 - val_loss: 0.3318 - val_accuracy: 0.8983
Epoch 27/30
566/566 [==============================] - 5s 9ms/step - loss: 0.7018 - accuracy: 0.7764 - val_loss: 0.3141 - val_accuracy: 0.9043
Epoch 28/30
566/566 [==============================] - 6s 10ms/step - loss: 0.7077 - accuracy: 0.7750 - val_loss: 0.2939 - val_accuracy: 0.9160
Epoch 29/30
566/566 [==============================] - 6s 10ms/step - loss: 0.6761 - accuracy: 0.7839 - val_loss: 0.2727 - val_accuracy: 0.9223
Epoch 30/30
566/566 [==============================] - 6s 11ms/step - loss: 0.6978 - accuracy: 0.7770 - val_loss: 0.2710 - val_accuracy: 0.9233

Loss on Test Dataset: 0.2784%
Accuracy on Test Dataset: 91.77%
CNN Error on Test Dataset: 8.23%

The test accuracy has increased but there is stronger overfitting.

# Create model
complex_model_31_3 = Sequential()

# Input layer
complex_model_31_3.add(Conv2D(32, (3, 3), input_shape=(31, 31, 1), activation='relu'))
# Pooling layer
complex_model_31_3.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_31_3.add(Dropout(0.2))
# Convolutional layer
complex_model_31_3.add(Conv2D(64, (3, 3), activation='relu'))
# Pooling layer
complex_model_31_3.add(MaxPooling2D(pool_size=(2, 2)))
# Batch Normalization
complex_model_31_3.add(BatchNormalization())
# Dropout layer
complex_model_31_3.add(Dropout(0.3))
# Convolutional layer
complex_model_31_3.add(Conv2D(128, (3, 3), activation='relu'))
# Pooling layer
complex_model_31_3.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout Layer
complex_model_31_3.add(Dropout(0.2))

# Flatten Feature Map
complex_model_31_3.add(Flatten())

# Fully Connected Dense Layer
complex_model_31_3.add(Dense(128, activation='relu'))
# Batch Normalization
complex_model_31_3.add(BatchNormalization())
# Dropout layer
complex_model_31_3.add(Dropout(0.2))
# Fully Connected Dense Layer
complex_model_31_3.add(Dense(64, activation='relu'))
# Output layer
complex_model_31_3.add(Dense(num_classes, activation='softmax'))

# Compile complex_model_31_3
complex_model_31_3.compile(loss='categorical_crossentropy', optimizer='adam', metrics=['accuracy'])

# complex_model_31_3 summary
complex_model_31_3.summary()

Model: "sequential_2"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 conv2d (Conv2D)             (None, 29, 29, 32)        320

 max_pooling2d (MaxPooling2D  (None, 14, 14, 32)       0
 )

 dropout (Dropout)           (None, 14, 14, 32)        0

 conv2d_1 (Conv2D)           (None, 12, 12, 64)        18496

 max_pooling2d_1 (MaxPooling  (None, 6, 6, 64)         0
 2D)

 batch_normalization (BatchN  (None, 6, 6, 64)         256
 ormalization)

 dropout_1 (Dropout)         (None, 6, 6, 64)          0

 conv2d_2 (Conv2D)           (None, 4, 4, 128)         73856

 max_pooling2d_2 (MaxPooling  (None, 2, 2, 128)        0
 2D)

 dropout_2 (Dropout)         (None, 2, 2, 128)         0

 flatten (Flatten)           (None, 512)               0

 dense (Dense)               (None, 128)               65664

 batch_normalization_1 (Batc  (None, 128)              512
 hNormalization)

 dropout_3 (Dropout)         (None, 128)               0

 dense_1 (Dense)             (None, 64)                8256

 dense_2 (Dense)             (None, 15)                975

=================================================================
Total params: 168,335
Trainable params: 167,951
Non-trainable params: 384
_________________________________________________________________

# Fit model with rescaled & data augmented train dataset
history_complex_model_31_3 = complex_model_31_3.fit(train_ds_31_dataAug_rescaled, validation_data = validation_ds_31_rescaled, epochs = 30, verbose = 1)

# Save model weights
complex_model_31_3.save_weights('complex_model_31_3_weights.h5')

# Summarize history for accuracy & loss
plotCompareMetrics(history_complex_model_31_3)

# Final evaluation of model
scores = complex_model_31_3.evaluate(test_ds_31_rescaled, verbose = 0)
print("Loss on Test Dataset: %.4f%%" % (scores[0]))
print("Accuracy on Test Dataset: %.2f%%" % (scores[1]*100))
print("CNN Error on Test Dataset: %.2f%%" % (100 - scores[1]*100))

Epoch 1/30
566/566 [==============================] - 14s 13ms/step - loss: 2.1791 - accuracy: 0.2899 - val_loss: 2.9717 - val_accuracy: 0.2157
Epoch 2/30
566/566 [==============================] - 7s 13ms/step - loss: 1.6849 - accuracy: 0.4472 - val_loss: 1.3918 - val_accuracy: 0.5373
Epoch 3/30
566/566 [==============================] - 7s 13ms/step - loss: 1.4844 - accuracy: 0.5119 - val_loss: 1.2422 - val_accuracy: 0.5883
Epoch 4/30
566/566 [==============================] - 7s 13ms/step - loss: 1.3344 - accuracy: 0.5643 - val_loss: 0.9604 - val_accuracy: 0.6837
Epoch 5/30
566/566 [==============================] - 7s 13ms/step - loss: 1.2280 - accuracy: 0.5969 - val_loss: 0.8229 - val_accuracy: 0.7273
Epoch 6/30
566/566 [==============================] - 7s 13ms/step - loss: 1.1329 - accuracy: 0.6314 - val_loss: 0.7799 - val_accuracy: 0.7477
Epoch 7/30
566/566 [==============================] - 8s 13ms/step - loss: 1.0651 - accuracy: 0.6561 - val_loss: 0.5901 - val_accuracy: 0.8153
Epoch 8/30
566/566 [==============================] - 7s 13ms/step - loss: 0.9907 - accuracy: 0.6798 - val_loss: 0.7002 - val_accuracy: 0.7657
Epoch 9/30
566/566 [==============================] - 7s 13ms/step - loss: 0.9565 - accuracy: 0.6905 - val_loss: 0.5395 - val_accuracy: 0.8243
Epoch 10/30
566/566 [==============================] - 7s 13ms/step - loss: 0.8938 - accuracy: 0.7080 - val_loss: 0.4794 - val_accuracy: 0.8443
Epoch 11/30
566/566 [==============================] - 7s 13ms/step - loss: 0.8617 - accuracy: 0.7255 - val_loss: 0.5898 - val_accuracy: 0.8107
Epoch 12/30
566/566 [==============================] - 7s 12ms/step - loss: 0.8079 - accuracy: 0.7389 - val_loss: 0.4561 - val_accuracy: 0.8520
Epoch 13/30
566/566 [==============================] - 7s 12ms/step - loss: 0.7955 - accuracy: 0.7437 - val_loss: 0.3898 - val_accuracy: 0.8803
Epoch 14/30
566/566 [==============================] - 7s 12ms/step - loss: 0.7570 - accuracy: 0.7529 - val_loss: 0.4102 - val_accuracy: 0.8737
Epoch 15/30
566/566 [==============================] - 7s 12ms/step - loss: 0.7503 - accuracy: 0.7600 - val_loss: 0.7941 - val_accuracy: 0.7477
Epoch 16/30
566/566 [==============================] - 7s 12ms/step - loss: 0.7540 - accuracy: 0.7601 - val_loss: 0.3361 - val_accuracy: 0.8960
Epoch 17/30
566/566 [==============================] - 7s 12ms/step - loss: 0.7140 - accuracy: 0.7707 - val_loss: 0.3076 - val_accuracy: 0.9043
Epoch 18/30
566/566 [==============================] - 7s 12ms/step - loss: 0.7034 - accuracy: 0.7709 - val_loss: 0.3306 - val_accuracy: 0.8950
Epoch 19/30
566/566 [==============================] - 7s 12ms/step - loss: 0.6687 - accuracy: 0.7839 - val_loss: 0.3764 - val_accuracy: 0.8817
Epoch 20/30
566/566 [==============================] - 7s 12ms/step - loss: 0.6642 - accuracy: 0.7849 - val_loss: 0.4239 - val_accuracy: 0.8660
Epoch 21/30
566/566 [==============================] - 7s 12ms/step - loss: 0.6491 - accuracy: 0.7927 - val_loss: 0.6604 - val_accuracy: 0.7930
Epoch 22/30
566/566 [==============================] - 7s 12ms/step - loss: 0.6391 - accuracy: 0.7912 - val_loss: 0.3794 - val_accuracy: 0.8800
Epoch 23/30
566/566 [==============================] - 7s 12ms/step - loss: 0.6212 - accuracy: 0.8015 - val_loss: 0.3379 - val_accuracy: 0.8883
Epoch 24/30
566/566 [==============================] - 7s 12ms/step - loss: 0.6129 - accuracy: 0.8014 - val_loss: 0.3410 - val_accuracy: 0.8930
Epoch 25/30
566/566 [==============================] - 7s 12ms/step - loss: 0.6032 - accuracy: 0.8044 - val_loss: 0.2664 - val_accuracy: 0.9190
Epoch 26/30
566/566 [==============================] - 7s 12ms/step - loss: 0.5936 - accuracy: 0.8084 - val_loss: 0.2570 - val_accuracy: 0.9213
Epoch 27/30
566/566 [==============================] - 7s 12ms/step - loss: 0.5706 - accuracy: 0.8155 - val_loss: 0.2691 - val_accuracy: 0.9193
Epoch 28/30
566/566 [==============================] - 7s 12ms/step - loss: 0.5699 - accuracy: 0.8155 - val_loss: 0.2420 - val_accuracy: 0.9290
Epoch 29/30
566/566 [==============================] - 7s 12ms/step - loss: 0.5485 - accuracy: 0.8238 - val_loss: 0.2248 - val_accuracy: 0.9277
Epoch 30/30
566/566 [==============================] - 7s 12ms/step - loss: 0.5603 - accuracy: 0.8164 - val_loss: 0.2456 - val_accuracy: 0.9213

Loss on Test Dataset: 0.2409%
Accuracy on Test Dataset: 92.10%
CNN Error on Test Dataset: 7.90%

Insights:

As I did modelling for the input size 31 x 31, I realised that the model tends to overfit more than for input size 128 x 128.

---

5. Model Improvement

1. Layer Kernel Regularizers

Regularizers allow you to apply penalties on layer parameters or layer activity during optimization. These penalties are summed into the loss function that the network optimizes.

I will be applying the kernel_regularizer to penalize the weights which are very large causing the network to overfit.

The available regularizers are L1 class & L2 class. The difference between the two is in how they are calculated.

L1 regularization penalty: loss = l1 * reduce_sum(abs(x))

L2 regularization penalty: loss = l2 * reduce_sum(square(x))

Source:
https://keras.io/api/layers/regularizers/
https://www.tensorflow.org/api_docs/python/tf/keras/regularizers
https://www.analyticsvidhya.com/blog/2018/04/fundamentals-deep-learning-regularization-techniques/

A. Input size: 128 by 128 pixels

1. L1 regularization

complex_model_128_3_l1 = Sequential()

# Convolutional Layer
complex_model_128_3_l1.add(Conv2D(32, (3,3), input_shape=(128, 128, 1), activation='relu'))
# Convolutional Layer
complex_model_128_3_l1.add(Conv2D(32, (3,3), activation='relu'))
# Pooling layer
complex_model_128_3_l1.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_128_3_l1.add(Dropout(0.4))
# Convolutional Layer
complex_model_128_3_l1.add(Conv2D(64, (3,3), activation='relu'))
# Convolutional Layer
complex_model_128_3_l1.add(Conv2D(64, (3,3), activation='relu'))
# Pooling layer
complex_model_128_3_l1.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_128_3_l1.add(Dropout(0.4))
# Convolutional Layer
complex_model_128_3_l1.add(Conv2D(128, (3,3), activation='relu'))
# Convolutional Layer
complex_model_128_3_l1.add(Conv2D(128, (3,3), activation='relu'))
# Pooling layer
complex_model_128_3_l1.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_128_3_l1.add(Dropout(0.4))

# Flatten the feature map
complex_model_128_3_l1.add(Flatten())

# Fully connected layer
complex_model_128_3_l1.add(Dense(128, activation='relu'))
# Batch Normalization layer
complex_model_128_3_l1.add(BatchNormalization())
# Dropout layer
complex_model_128_3_l1.add(Dropout(0.4))
# Outout layer
complex_model_128_3_l1.add(Dense(num_classes, activation='softmax', kernel_regularizer=tf.keras.regularizers.l1(0.01)))

# Compile basedline_model_128
complex_model_128_3_l1.compile(loss='categorical_crossentropy', optimizer='adam', metrics=['accuracy'])

# print the basedline_model_128 summary
complex_model_128_3_l1.summary()

Model: "sequential_30"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 conv2d_92 (Conv2D)          (None, 126, 126, 32)      320

 conv2d_93 (Conv2D)          (None, 124, 124, 32)      9248

 max_pooling2d_65 (MaxPoolin  (None, 62, 62, 32)       0
 g2D)

 dropout_69 (Dropout)        (None, 62, 62, 32)        0

 conv2d_94 (Conv2D)          (None, 60, 60, 64)        18496

 conv2d_95 (Conv2D)          (None, 58, 58, 64)        36928

 max_pooling2d_66 (MaxPoolin  (None, 29, 29, 64)       0
 g2D)

 dropout_70 (Dropout)        (None, 29, 29, 64)        0

 conv2d_96 (Conv2D)          (None, 27, 27, 128)       73856

 conv2d_97 (Conv2D)          (None, 25, 25, 128)       147584

 max_pooling2d_67 (MaxPoolin  (None, 12, 12, 128)      0
 g2D)

 dropout_71 (Dropout)        (None, 12, 12, 128)       0

 flatten_24 (Flatten)        (None, 18432)             0

 dense_55 (Dense)            (None, 128)               2359424

 batch_normalization_24 (Bat  (None, 128)              512
 chNormalization)

 dropout_72 (Dropout)        (None, 128)               0

 dense_56 (Dense)            (None, 15)                1935

=================================================================
Total params: 2,648,303
Trainable params: 2,648,047
Non-trainable params: 256
_________________________________________________________________

# Fit model with rescaled & data augmented train dataset
history_complex_model_128_3_l1 = complex_model_128_3_l1.fit(train_ds_128_dataAug_rescaled, validation_data = validation_ds_128_rescaled, epochs = 30, verbose = 1)

# Save model weights
complex_model_128_3_l1.save_weights('complex_model_128_3_l1_weights.h5')

# Summarize history for accuracy & loss
plotCompareMetrics(history_complex_model_128_3_l1)

# Final evaluation of model
scores = complex_model_128_3_l1.evaluate(test_ds_128_rescaled, verbose = 0)
print("Loss on Test Dataset: %.4f%%" % (scores[0]))
print("Accuracy on Test Dataset: %.2f%%" % (scores[1]*100))
print("CNN Error on Test Dataset: %.2f%%" % (100 - scores[1]*100))

Epoch 1/30
566/566 [==============================] - 38s 67ms/step - loss: 2.9554 - accuracy: 0.2234 - val_loss: 2.4250 - val_accuracy: 0.2603
Epoch 2/30
566/566 [==============================] - 38s 66ms/step - loss: 2.1265 - accuracy: 0.3759 - val_loss: 2.2518 - val_accuracy: 0.3170
Epoch 3/30
566/566 [==============================] - 37s 65ms/step - loss: 1.8380 - accuracy: 0.4925 - val_loss: 1.8126 - val_accuracy: 0.5160
Epoch 4/30
566/566 [==============================] - 38s 66ms/step - loss: 1.6792 - accuracy: 0.5488 - val_loss: 1.4784 - val_accuracy: 0.6370
Epoch 5/30
566/566 [==============================] - 38s 67ms/step - loss: 1.4476 - accuracy: 0.6268 - val_loss: 1.8600 - val_accuracy: 0.4607
Epoch 6/30
566/566 [==============================] - 38s 67ms/step - loss: 1.3080 - accuracy: 0.6751 - val_loss: 1.0876 - val_accuracy: 0.7653
Epoch 7/30
566/566 [==============================] - 37s 65ms/step - loss: 1.1425 - accuracy: 0.7295 - val_loss: 0.8673 - val_accuracy: 0.8287
Epoch 8/30
566/566 [==============================] - 38s 67ms/step - loss: 1.0336 - accuracy: 0.7689 - val_loss: 0.7760 - val_accuracy: 0.8597
Epoch 9/30
566/566 [==============================] - 34s 60ms/step - loss: 1.5829 - accuracy: 0.5729 - val_loss: 1.1950 - val_accuracy: 0.7177
Epoch 10/30
566/566 [==============================] - 35s 62ms/step - loss: 1.0385 - accuracy: 0.7585 - val_loss: 0.8322 - val_accuracy: 0.8370
Epoch 11/30
566/566 [==============================] - 37s 65ms/step - loss: 0.8643 - accuracy: 0.8173 - val_loss: 0.6489 - val_accuracy: 0.8853
Epoch 12/30
566/566 [==============================] - 38s 66ms/step - loss: 0.8272 - accuracy: 0.8258 - val_loss: 0.6553 - val_accuracy: 0.8793
Epoch 13/30
566/566 [==============================] - 38s 66ms/step - loss: 0.9418 - accuracy: 0.7880 - val_loss: 0.7749 - val_accuracy: 0.8477
Epoch 14/30
566/566 [==============================] - 38s 67ms/step - loss: 0.7785 - accuracy: 0.8391 - val_loss: 0.6746 - val_accuracy: 0.8673
Epoch 15/30
566/566 [==============================] - 37s 65ms/step - loss: 0.7262 - accuracy: 0.8536 - val_loss: 0.5512 - val_accuracy: 0.9077
Epoch 16/30
566/566 [==============================] - 38s 66ms/step - loss: 0.6796 - accuracy: 0.8726 - val_loss: 0.4571 - val_accuracy: 0.9367
Epoch 17/30
566/566 [==============================] - 38s 66ms/step - loss: 0.6516 - accuracy: 0.8747 - val_loss: 0.4726 - val_accuracy: 0.9257
Epoch 18/30
566/566 [==============================] - 38s 67ms/step - loss: 0.6113 - accuracy: 0.8901 - val_loss: 0.4425 - val_accuracy: 0.9433
Epoch 19/30
566/566 [==============================] - 38s 66ms/step - loss: 0.6044 - accuracy: 0.8878 - val_loss: 0.4209 - val_accuracy: 0.9433
Epoch 20/30
566/566 [==============================] - 37s 65ms/step - loss: 0.5853 - accuracy: 0.8953 - val_loss: 0.5284 - val_accuracy: 0.9050
Epoch 21/30
566/566 [==============================] - 38s 66ms/step - loss: 0.5491 - accuracy: 0.9039 - val_loss: 0.4142 - val_accuracy: 0.9423
Epoch 22/30
566/566 [==============================] - 38s 66ms/step - loss: 0.9208 - accuracy: 0.7875 - val_loss: 0.6737 - val_accuracy: 0.8667
Epoch 23/30
566/566 [==============================] - 38s 67ms/step - loss: 0.5647 - accuracy: 0.8968 - val_loss: 0.3485 - val_accuracy: 0.9610
Epoch 24/30
566/566 [==============================] - 37s 64ms/step - loss: 0.4974 - accuracy: 0.9215 - val_loss: 0.3255 - val_accuracy: 0.9650
Epoch 25/30
566/566 [==============================] - 38s 66ms/step - loss: 0.6051 - accuracy: 0.8859 - val_loss: 0.3765 - val_accuracy: 0.9490
Epoch 26/30
566/566 [==============================] - 38s 66ms/step - loss: 0.4625 - accuracy: 0.9294 - val_loss: 0.3246 - val_accuracy: 0.9680
Epoch 27/30
566/566 [==============================] - 38s 66ms/step - loss: 0.4522 - accuracy: 0.9299 - val_loss: 0.3002 - val_accuracy: 0.9737
Epoch 28/30
566/566 [==============================] - 34s 60ms/step - loss: 0.4466 - accuracy: 0.9327 - val_loss: 0.3350 - val_accuracy: 0.9593
Epoch 29/30
566/566 [==============================] - 34s 59ms/step - loss: 0.4416 - accuracy: 0.9316 - val_loss: 0.3093 - val_accuracy: 0.9643
Epoch 30/30
566/566 [==============================] - 34s 59ms/step - loss: 0.4226 - accuracy: 0.9382 - val_loss: 0.3183 - val_accuracy: 0.9663

Loss on Test Dataset: 0.3160%
Accuracy on Test Dataset: 96.67%
CNN Error on Test Dataset: 3.33%

Insights:

• By adding in L1 regularisers, the model is less overfitted.

2. L2 regularization

complex_model_128_3_l2 = Sequential()

# Convolutional Layer
complex_model_128_3_l2.add(Conv2D(32, (3,3), input_shape=(128, 128, 1), activation='relu'))
# Convolutional Layer
complex_model_128_3_l2.add(Conv2D(32, (3,3), activation='relu'))
# Pooling layer
complex_model_128_3_l2.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_128_3_l2.add(Dropout(0.4))
# Convolutional Layer
complex_model_128_3_l2.add(Conv2D(64, (3,3), activation='relu'))
# Convolutional Layer
complex_model_128_3_l2.add(Conv2D(64, (3,3), activation='relu'))
# Pooling layer
complex_model_128_3_l2.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_128_3_l2.add(Dropout(0.4))
# Convolutional Layer
complex_model_128_3_l2.add(Conv2D(128, (3,3), activation='relu'))
# Convolutional Layer
complex_model_128_3_l2.add(Conv2D(128, (3,3), activation='relu'))
# Pooling layer
complex_model_128_3_l2.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_128_3_l2.add(Dropout(0.4))

# Flatten the feature map
complex_model_128_3_l2.add(Flatten())

# Fully connected layer
complex_model_128_3_l2.add(Dense(128, activation='relu'))
# Batch Normalization layer
complex_model_128_3_l2.add(BatchNormalization())
# Dropout layer
complex_model_128_3_l2.add(Dropout(0.4))
# Outout layer
complex_model_128_3_l2.add(Dense(num_classes, activation='softmax', kernel_regularizer=tf.keras.regularizers.l2(0.01)))

# Compile basedline_model_128
complex_model_128_3_l2.compile(loss='categorical_crossentropy', optimizer='adam', metrics=['accuracy'])

# print the basedline_model_128 summary
complex_model_128_3_l2.summary()

Model: "sequential_31"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 conv2d_98 (Conv2D)          (None, 126, 126, 32)      320

 conv2d_99 (Conv2D)          (None, 124, 124, 32)      9248

 max_pooling2d_68 (MaxPoolin  (None, 62, 62, 32)       0
 g2D)

 dropout_73 (Dropout)        (None, 62, 62, 32)        0

 conv2d_100 (Conv2D)         (None, 60, 60, 64)        18496

 conv2d_101 (Conv2D)         (None, 58, 58, 64)        36928

 max_pooling2d_69 (MaxPoolin  (None, 29, 29, 64)       0
 g2D)

 dropout_74 (Dropout)        (None, 29, 29, 64)        0

 conv2d_102 (Conv2D)         (None, 27, 27, 128)       73856

 conv2d_103 (Conv2D)         (None, 25, 25, 128)       147584

 max_pooling2d_70 (MaxPoolin  (None, 12, 12, 128)      0
 g2D)

 dropout_75 (Dropout)        (None, 12, 12, 128)       0

 flatten_25 (Flatten)        (None, 18432)             0

 dense_57 (Dense)            (None, 128)               2359424

 batch_normalization_25 (Bat  (None, 128)              512
 chNormalization)

 dropout_76 (Dropout)        (None, 128)               0

 dense_58 (Dense)            (None, 15)                1935

=================================================================
Total params: 2,648,303
Trainable params: 2,648,047
Non-trainable params: 256
_________________________________________________________________

# Fit model with rescaled & data augmented train dataset
history_complex_model_128_3_l2 = complex_model_128_3_l2.fit(train_ds_128_dataAug_rescaled, validation_data = validation_ds_128_rescaled, epochs = 30, verbose = 1)

# Save model weights
complex_model_128_3_l2.save_weights('complex_model_128_3_l2_weights.h5')

# Summarize history for accuracy & loss
plotCompareMetrics(history_complex_model_128_3_l2)

# Final evaluation of model
scores = complex_model_128_3_l2.evaluate(test_ds_128_rescaled, verbose = 0)
print("Loss on Test Dataset: %.4f%%" % (scores[0]))
print("Accuracy on Test Dataset: %.2f%%" % (scores[1]*100))
print("CNN Error on Test Dataset: %.2f%%" % (100 - scores[1]*100))

Epoch 1/30
566/566 [==============================] - 34s 59ms/step - loss: 2.4532 - accuracy: 0.2341 - val_loss: 2.1542 - val_accuracy: 0.2917
Epoch 2/30
566/566 [==============================] - 34s 59ms/step - loss: 1.8221 - accuracy: 0.4248 - val_loss: 2.5700 - val_accuracy: 0.2130
Epoch 3/30
566/566 [==============================] - 34s 59ms/step - loss: 1.5534 - accuracy: 0.5161 - val_loss: 1.6362 - val_accuracy: 0.4533
Epoch 4/30
566/566 [==============================] - 32s 56ms/step - loss: 1.2836 - accuracy: 0.6120 - val_loss: 0.9652 - val_accuracy: 0.7353
Epoch 5/30
566/566 [==============================] - 34s 59ms/step - loss: 1.1120 - accuracy: 0.6668 - val_loss: 1.0940 - val_accuracy: 0.6570
Epoch 6/30
566/566 [==============================] - 34s 59ms/step - loss: 0.9866 - accuracy: 0.7127 - val_loss: 0.8626 - val_accuracy: 0.7433
Epoch 7/30
566/566 [==============================] - 34s 59ms/step - loss: 0.9248 - accuracy: 0.7328 - val_loss: 0.6962 - val_accuracy: 0.7970
Epoch 8/30
566/566 [==============================] - 32s 57ms/step - loss: 0.8042 - accuracy: 0.7705 - val_loss: 0.5729 - val_accuracy: 0.8510
Epoch 9/30
566/566 [==============================] - 34s 59ms/step - loss: 0.7220 - accuracy: 0.7993 - val_loss: 0.5561 - val_accuracy: 0.8570
Epoch 10/30
566/566 [==============================] - 34s 60ms/step - loss: 0.6450 - accuracy: 0.8237 - val_loss: 0.4689 - val_accuracy: 0.8810
Epoch 11/30
566/566 [==============================] - 34s 59ms/step - loss: 0.6031 - accuracy: 0.8377 - val_loss: 0.4873 - val_accuracy: 0.8717
Epoch 12/30
566/566 [==============================] - 33s 58ms/step - loss: 0.5512 - accuracy: 0.8548 - val_loss: 0.3776 - val_accuracy: 0.9097
Epoch 13/30
566/566 [==============================] - 34s 59ms/step - loss: 0.4926 - accuracy: 0.8694 - val_loss: 0.3598 - val_accuracy: 0.9160
Epoch 14/30
566/566 [==============================] - 34s 60ms/step - loss: 0.4923 - accuracy: 0.8706 - val_loss: 0.4936 - val_accuracy: 0.8653
Epoch 15/30
566/566 [==============================] - 34s 60ms/step - loss: 0.5078 - accuracy: 0.8676 - val_loss: 0.2714 - val_accuracy: 0.9393
Epoch 16/30
566/566 [==============================] - 34s 59ms/step - loss: 0.4003 - accuracy: 0.8993 - val_loss: 0.3029 - val_accuracy: 0.9240
Epoch 17/30
566/566 [==============================] - 33s 58ms/step - loss: 0.3856 - accuracy: 0.9031 - val_loss: 0.2563 - val_accuracy: 0.9410
Epoch 18/30
566/566 [==============================] - 34s 60ms/step - loss: 0.4022 - accuracy: 0.8975 - val_loss: 0.2805 - val_accuracy: 0.9343
Epoch 19/30
566/566 [==============================] - 34s 60ms/step - loss: 0.3247 - accuracy: 0.9209 - val_loss: 0.2467 - val_accuracy: 0.9483
Epoch 20/30
566/566 [==============================] - 34s 60ms/step - loss: 0.3053 - accuracy: 0.9289 - val_loss: 0.2068 - val_accuracy: 0.9593
Epoch 21/30
566/566 [==============================] - 33s 57ms/step - loss: 0.2977 - accuracy: 0.9287 - val_loss: 0.2053 - val_accuracy: 0.9613
Epoch 22/30
566/566 [==============================] - 34s 59ms/step - loss: 0.2905 - accuracy: 0.9302 - val_loss: 0.2208 - val_accuracy: 0.9510
Epoch 23/30
566/566 [==============================] - 34s 60ms/step - loss: 0.2651 - accuracy: 0.9361 - val_loss: 0.1931 - val_accuracy: 0.9623
Epoch 24/30
566/566 [==============================] - 34s 59ms/step - loss: 0.2628 - accuracy: 0.9386 - val_loss: 0.2246 - val_accuracy: 0.9510
Epoch 25/30
566/566 [==============================] - 33s 57ms/step - loss: 0.2488 - accuracy: 0.9420 - val_loss: 0.2104 - val_accuracy: 0.9567
Epoch 26/30
566/566 [==============================] - 34s 59ms/step - loss: 0.2447 - accuracy: 0.9440 - val_loss: 0.1959 - val_accuracy: 0.9613
Epoch 27/30
566/566 [==============================] - 34s 59ms/step - loss: 0.2542 - accuracy: 0.9374 - val_loss: 0.2170 - val_accuracy: 0.9547
Epoch 28/30
566/566 [==============================] - 34s 59ms/step - loss: 0.2401 - accuracy: 0.9443 - val_loss: 0.1911 - val_accuracy: 0.9600
Epoch 29/30
566/566 [==============================] - 32s 57ms/step - loss: 0.2206 - accuracy: 0.9471 - val_loss: 0.2735 - val_accuracy: 0.9313
Epoch 30/30
566/566 [==============================] - 34s 59ms/step - loss: 0.2104 - accuracy: 0.9514 - val_loss: 0.1582 - val_accuracy: 0.9730

Loss on Test Dataset: 0.1422%
Accuracy on Test Dataset: 97.30%
CNN Error on Test Dataset: 2.70%

Insights:

• Model is less overfitted and test accuracy has increased.

Hence, I will choose L2 regularizer.

B. Input size: 31 by 31 pixels

1. L1 regularization

# Create model
complex_model_31_3_l1 = Sequential()

# Input layer
complex_model_31_3_l1.add(Conv2D(32, (3, 3), input_shape=(31, 31, 1), activation='relu'))
# Pooling layer
complex_model_31_3_l1.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_31_3_l1.add(Dropout(0.2))
# Convolutional layer
complex_model_31_3_l1.add(Conv2D(64, (3, 3), activation='relu'))
# Pooling layer
complex_model_31_3_l1.add(MaxPooling2D(pool_size=(2, 2)))
# Batch Normalization
complex_model_31_3_l1.add(BatchNormalization())
# Dropout layer
complex_model_31_3_l1.add(Dropout(0.3))
# Convolutional layer
complex_model_31_3_l1.add(Conv2D(128, (3, 3), activation='relu'))
# Pooling layer
complex_model_31_3_l1.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout Layer
complex_model_31_3_l1.add(Dropout(0.2))

# Flatten Feature Map
complex_model_31_3_l1.add(Flatten())

# Fully Connected Dense Layer
complex_model_31_3_l1.add(Dense(128, activation='relu'))
# Batch Normalization
complex_model_31_3_l1.add(BatchNormalization())
# Dropout layer
complex_model_31_3_l1.add(Dropout(0.2))
# Fully Connected Dense Layer
complex_model_31_3_l1.add(Dense(64, activation='relu'))
# Output layer
complex_model_31_3_l1.add(Dense(num_classes, activation='softmax', kernel_regularizer=tf.keras.regularizers.l1(0.01)))

# Compile complex_model_31_3_l1
complex_model_31_3_l1.compile(loss='categorical_crossentropy', optimizer='adam', metrics=['accuracy'])

# complex_model_31_3_l1 summary
complex_model_31_3_l1.summary()

Model: "sequential_33"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 conv2d_107 (Conv2D)         (None, 29, 29, 32)        320

 max_pooling2d_74 (MaxPoolin  (None, 14, 14, 32)       0
 g2D)

 dropout_81 (Dropout)        (None, 14, 14, 32)        0

 conv2d_108 (Conv2D)         (None, 12, 12, 64)        18496

 max_pooling2d_75 (MaxPoolin  (None, 6, 6, 64)         0
 g2D)

 batch_normalization_28 (Bat  (None, 6, 6, 64)         256
 chNormalization)

 dropout_82 (Dropout)        (None, 6, 6, 64)          0

 conv2d_109 (Conv2D)         (None, 4, 4, 128)         73856

 max_pooling2d_76 (MaxPoolin  (None, 2, 2, 128)        0
 g2D)

 dropout_83 (Dropout)        (None, 2, 2, 128)         0

 flatten_27 (Flatten)        (None, 512)               0

 dense_62 (Dense)            (None, 128)               65664

 batch_normalization_29 (Bat  (None, 128)              512
 chNormalization)

 dropout_84 (Dropout)        (None, 128)               0

 dense_63 (Dense)            (None, 64)                8256

 dense_64 (Dense)            (None, 15)                975

=================================================================
Total params: 168,335
Trainable params: 167,951
Non-trainable params: 384
_________________________________________________________________

# Fit model with rescaled & data augmented train dataset
history_complex_model_31_3_l1 = complex_model_31_3_l1.fit(train_ds_31_dataAug_rescaled, validation_data = validation_ds_31_rescaled, epochs = 30, verbose = 1)

# Save model weights
complex_model_31_3_l1.save_weights('complex_model_31_3_l1_weights.h5')

# Summarize history for accuracy & loss
plotCompareMetrics(history_complex_model_31_3_l1)

# Final evaluation of model
scores = complex_model_31_3_l1.evaluate(test_ds_31_rescaled, verbose = 0)
print("Loss on Test Dataset: %.4f%%" % (scores[0]))
print("Accuracy on Test Dataset: %.2f%%" % (scores[1]*100))
print("CNN Error on Test Dataset: %.2f%%" % (100 - scores[1]*100))

Epoch 1/30
566/566 [==============================] - 10s 16ms/step - loss: 2.9332 - accuracy: 0.2918 - val_loss: 3.3141 - val_accuracy: 0.1567
Epoch 2/30
566/566 [==============================] - 9s 16ms/step - loss: 2.1039 - accuracy: 0.3980 - val_loss: 2.2038 - val_accuracy: 0.3590
Epoch 3/30
566/566 [==============================] - 9s 16ms/step - loss: 1.8451 - accuracy: 0.4581 - val_loss: 1.9010 - val_accuracy: 0.4300
Epoch 4/30
566/566 [==============================] - 9s 16ms/step - loss: 1.7012 - accuracy: 0.5045 - val_loss: 1.5159 - val_accuracy: 0.5573
Epoch 5/30
566/566 [==============================] - 9s 15ms/step - loss: 1.5915 - accuracy: 0.5349 - val_loss: 1.2748 - val_accuracy: 0.6287
Epoch 6/30
566/566 [==============================] - 9s 16ms/step - loss: 1.4799 - accuracy: 0.5689 - val_loss: 1.2841 - val_accuracy: 0.6210
Epoch 7/30
566/566 [==============================] - 9s 16ms/step - loss: 1.3932 - accuracy: 0.5908 - val_loss: 1.6099 - val_accuracy: 0.5303
Epoch 8/30
566/566 [==============================] - 9s 16ms/step - loss: 1.3380 - accuracy: 0.6162 - val_loss: 1.3202 - val_accuracy: 0.6127
Epoch 9/30
566/566 [==============================] - 9s 16ms/step - loss: 1.2521 - accuracy: 0.6374 - val_loss: 0.8943 - val_accuracy: 0.7540
Epoch 10/30
566/566 [==============================] - 9s 16ms/step - loss: 1.1986 - accuracy: 0.6609 - val_loss: 0.7916 - val_accuracy: 0.7900
Epoch 11/30
566/566 [==============================] - 9s 16ms/step - loss: 1.1588 - accuracy: 0.6715 - val_loss: 0.7670 - val_accuracy: 0.7947
Epoch 12/30
566/566 [==============================] - 9s 16ms/step - loss: 1.1125 - accuracy: 0.6822 - val_loss: 0.9724 - val_accuracy: 0.7187
Epoch 13/30
566/566 [==============================] - 9s 16ms/step - loss: 1.0683 - accuracy: 0.6953 - val_loss: 0.7139 - val_accuracy: 0.8097
Epoch 14/30
566/566 [==============================] - 9s 16ms/step - loss: 1.0281 - accuracy: 0.7029 - val_loss: 0.5765 - val_accuracy: 0.8583
Epoch 15/30
566/566 [==============================] - 9s 15ms/step - loss: 1.0113 - accuracy: 0.7131 - val_loss: 0.7912 - val_accuracy: 0.7733
Epoch 16/30
566/566 [==============================] - 9s 16ms/step - loss: 0.9772 - accuracy: 0.7230 - val_loss: 0.6989 - val_accuracy: 0.8087
Epoch 17/30
566/566 [==============================] - 9s 16ms/step - loss: 0.9715 - accuracy: 0.7254 - val_loss: 0.8963 - val_accuracy: 0.7460
Epoch 18/30
566/566 [==============================] - 9s 16ms/step - loss: 0.9444 - accuracy: 0.7334 - val_loss: 0.5721 - val_accuracy: 0.8523
Epoch 19/30
566/566 [==============================] - 9s 16ms/step - loss: 0.9161 - accuracy: 0.7426 - val_loss: 0.5594 - val_accuracy: 0.8580
Epoch 20/30
566/566 [==============================] - 9s 16ms/step - loss: 0.9003 - accuracy: 0.7442 - val_loss: 0.6018 - val_accuracy: 0.8363
Epoch 21/30
566/566 [==============================] - 9s 16ms/step - loss: 0.8853 - accuracy: 0.7510 - val_loss: 0.4626 - val_accuracy: 0.8940
Epoch 22/30
566/566 [==============================] - 9s 16ms/step - loss: 0.8658 - accuracy: 0.7516 - val_loss: 0.5277 - val_accuracy: 0.8600
Epoch 23/30
566/566 [==============================] - 9s 16ms/step - loss: 0.8571 - accuracy: 0.7569 - val_loss: 0.5411 - val_accuracy: 0.8610
Epoch 24/30
566/566 [==============================] - 9s 16ms/step - loss: 0.8584 - accuracy: 0.7579 - val_loss: 0.4522 - val_accuracy: 0.8907
Epoch 25/30
566/566 [==============================] - 9s 15ms/step - loss: 0.8372 - accuracy: 0.7617 - val_loss: 0.4074 - val_accuracy: 0.9027
Epoch 26/30
566/566 [==============================] - 9s 17ms/step - loss: 0.8237 - accuracy: 0.7672 - val_loss: 0.5089 - val_accuracy: 0.8650
Epoch 27/30
566/566 [==============================] - 10s 17ms/step - loss: 0.8476 - accuracy: 0.7599 - val_loss: 0.4051 - val_accuracy: 0.9037
Epoch 28/30
566/566 [==============================] - 9s 16ms/step - loss: 0.8131 - accuracy: 0.7672 - val_loss: 0.3977 - val_accuracy: 0.9020
Epoch 29/30
566/566 [==============================] - 9s 16ms/step - loss: 0.7898 - accuracy: 0.7778 - val_loss: 0.4371 - val_accuracy: 0.8927
Epoch 30/30
566/566 [==============================] - 9s 16ms/step - loss: 0.7906 - accuracy: 0.7753 - val_loss: 0.3773 - val_accuracy: 0.9143

Loss on Test Dataset: 0.3674%
Accuracy on Test Dataset: 92.47%
CNN Error on Test Dataset: 7.53%

2. L2 regularization

# Create model
complex_model_31_3_l2 = Sequential()

# Input layer
complex_model_31_3_l2.add(Conv2D(32, (3, 3), input_shape=(31, 31, 1), activation='relu'))
# Pooling layer
complex_model_31_3_l2.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_31_3_l2.add(Dropout(0.2))
# Convolutional layer
complex_model_31_3_l2.add(Conv2D(64, (3, 3), activation='relu'))
# Pooling layer
complex_model_31_3_l2.add(MaxPooling2D(pool_size=(2, 2)))
# Batch Normalization
complex_model_31_3_l2.add(BatchNormalization())
# Dropout layer
complex_model_31_3_l2.add(Dropout(0.3))
# Convolutional layer
complex_model_31_3_l2.add(Conv2D(128, (3, 3), activation='relu'))
# Pooling layer
complex_model_31_3_l2.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout Layer
complex_model_31_3_l2.add(Dropout(0.2))

# Flatten Feature Map
complex_model_31_3_l2.add(Flatten())

# Fully Connected Dense Layer
complex_model_31_3_l2.add(Dense(128, activation='relu'))
# Batch Normalization
complex_model_31_3_l2.add(BatchNormalization())
# Dropout layer
complex_model_31_3_l2.add(Dropout(0.2))
# Fully Connected Dense Layer
complex_model_31_3_l2.add(Dense(64, activation='relu'))
# Output layer
complex_model_31_3_l2.add(Dense(num_classes, activation='softmax', kernel_regularizer=tf.keras.regularizers.l2(0.01)))

# Compile complex_model_31_3_l2
complex_model_31_3_l2.compile(loss='categorical_crossentropy', optimizer='adam', metrics=['accuracy'])

# complex_model_31_3_l2 summary
complex_model_31_3_l2.summary()

Model: "sequential_32"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 conv2d_104 (Conv2D)         (None, 29, 29, 32)        320

 max_pooling2d_71 (MaxPoolin  (None, 14, 14, 32)       0
 g2D)

 dropout_77 (Dropout)        (None, 14, 14, 32)        0

 conv2d_105 (Conv2D)         (None, 12, 12, 64)        18496

 max_pooling2d_72 (MaxPoolin  (None, 6, 6, 64)         0
 g2D)

 batch_normalization_26 (Bat  (None, 6, 6, 64)         256
 chNormalization)

 dropout_78 (Dropout)        (None, 6, 6, 64)          0

 conv2d_106 (Conv2D)         (None, 4, 4, 128)         73856

 max_pooling2d_73 (MaxPoolin  (None, 2, 2, 128)        0
 g2D)

 dropout_79 (Dropout)        (None, 2, 2, 128)         0

 flatten_26 (Flatten)        (None, 512)               0

 dense_59 (Dense)            (None, 128)               65664

 batch_normalization_27 (Bat  (None, 128)              512
 chNormalization)

 dropout_80 (Dropout)        (None, 128)               0

 dense_60 (Dense)            (None, 64)                8256

 dense_61 (Dense)            (None, 15)                975

=================================================================
Total params: 168,335
Trainable params: 167,951
Non-trainable params: 384
_________________________________________________________________

# Fit model with rescaled & data augmented train dataset
history_complex_model_31_3_l2 = complex_model_31_3_l2.fit(train_ds_31_dataAug_rescaled, validation_data = validation_ds_31_rescaled, epochs = 30, verbose = 1)

# Save model weights
complex_model_31_3_l2.save_weights('complex_model_31_3_l2_weights.h5')

# Summarize history for accuracy & loss
plotCompareMetrics(history_complex_model_31_3_l2)

# Final evaluation of model
scores = complex_model_31_3_l2.evaluate(test_ds_31_rescaled, verbose = 0)
print("Loss on Test Dataset: %.4f%%" % (scores[0]))
print("Accuracy on Test Dataset: %.2f%%" % (scores[1]*100))
print("CNN Error on Test Dataset: %.2f%%" % (100 - scores[1]*100))

Epoch 1/30
566/566 [==============================] - 10s 16ms/step - loss: 2.3583 - accuracy: 0.2846 - val_loss: 2.9424 - val_accuracy: 0.2113
Epoch 2/30
566/566 [==============================] - 9s 16ms/step - loss: 1.8857 - accuracy: 0.4104 - val_loss: 1.5416 - val_accuracy: 0.5133
Epoch 3/30
566/566 [==============================] - 9s 16ms/step - loss: 1.6694 - accuracy: 0.4746 - val_loss: 1.4822 - val_accuracy: 0.5220
Epoch 4/30
566/566 [==============================] - 9s 16ms/step - loss: 1.5414 - accuracy: 0.5172 - val_loss: 2.1690 - val_accuracy: 0.3850
Epoch 5/30
566/566 [==============================] - 9s 16ms/step - loss: 1.4263 - accuracy: 0.5525 - val_loss: 1.0845 - val_accuracy: 0.6750
Epoch 6/30
566/566 [==============================] - 9s 16ms/step - loss: 1.3336 - accuracy: 0.5869 - val_loss: 1.2165 - val_accuracy: 0.6247
Epoch 7/30
566/566 [==============================] - 9s 16ms/step - loss: 1.2657 - accuracy: 0.6061 - val_loss: 0.9439 - val_accuracy: 0.7107
Epoch 8/30
566/566 [==============================] - 9s 16ms/step - loss: 1.2057 - accuracy: 0.6278 - val_loss: 0.7659 - val_accuracy: 0.7733
Epoch 9/30
566/566 [==============================] - 9s 16ms/step - loss: 1.1359 - accuracy: 0.6465 - val_loss: 0.7663 - val_accuracy: 0.7603
Epoch 10/30
566/566 [==============================] - 9s 16ms/step - loss: 1.0974 - accuracy: 0.6593 - val_loss: 0.7561 - val_accuracy: 0.7730
Epoch 11/30
566/566 [==============================] - 9s 16ms/step - loss: 1.0579 - accuracy: 0.6749 - val_loss: 0.7101 - val_accuracy: 0.7870
Epoch 12/30
566/566 [==============================] - 9s 16ms/step - loss: 1.0186 - accuracy: 0.6869 - val_loss: 0.6386 - val_accuracy: 0.8097
Epoch 13/30
566/566 [==============================] - 9s 15ms/step - loss: 0.9854 - accuracy: 0.6959 - val_loss: 1.8578 - val_accuracy: 0.5043
Epoch 14/30
566/566 [==============================] - 9s 16ms/step - loss: 1.0521 - accuracy: 0.6796 - val_loss: 0.6314 - val_accuracy: 0.8093
Epoch 15/30
566/566 [==============================] - 9s 16ms/step - loss: 0.9400 - accuracy: 0.7084 - val_loss: 0.7179 - val_accuracy: 0.7897
Epoch 16/30
566/566 [==============================] - 9s 16ms/step - loss: 0.9024 - accuracy: 0.7200 - val_loss: 0.5539 - val_accuracy: 0.8387
Epoch 17/30
566/566 [==============================] - 9s 16ms/step - loss: 0.8839 - accuracy: 0.7261 - val_loss: 0.6702 - val_accuracy: 0.8043
Epoch 18/30
566/566 [==============================] - 9s 16ms/step - loss: 0.8645 - accuracy: 0.7321 - val_loss: 0.5386 - val_accuracy: 0.8417
Epoch 19/30
566/566 [==============================] - 9s 16ms/step - loss: 0.8651 - accuracy: 0.7331 - val_loss: 0.6314 - val_accuracy: 0.8077
Epoch 20/30
566/566 [==============================] - 9s 16ms/step - loss: 0.8523 - accuracy: 0.7383 - val_loss: 1.4044 - val_accuracy: 0.5997
Epoch 21/30
566/566 [==============================] - 9s 16ms/step - loss: 0.8927 - accuracy: 0.7242 - val_loss: 0.5632 - val_accuracy: 0.8257
Epoch 22/30
566/566 [==============================] - 9s 16ms/step - loss: 0.8497 - accuracy: 0.7378 - val_loss: 0.5962 - val_accuracy: 0.8140
Epoch 23/30
566/566 [==============================] - 9s 15ms/step - loss: 0.8149 - accuracy: 0.7487 - val_loss: 0.4371 - val_accuracy: 0.8773
Epoch 24/30
566/566 [==============================] - 9s 16ms/step - loss: 0.7800 - accuracy: 0.7590 - val_loss: 0.5243 - val_accuracy: 0.8397
Epoch 25/30
566/566 [==============================] - 9s 16ms/step - loss: 0.7774 - accuracy: 0.7617 - val_loss: 0.4569 - val_accuracy: 0.8673
Epoch 26/30
566/566 [==============================] - 9s 16ms/step - loss: 0.7967 - accuracy: 0.7525 - val_loss: 0.5340 - val_accuracy: 0.8390
Epoch 27/30
566/566 [==============================] - 9s 16ms/step - loss: 0.7640 - accuracy: 0.7636 - val_loss: 0.4084 - val_accuracy: 0.8873
Epoch 28/30
566/566 [==============================] - 9s 16ms/step - loss: 0.7560 - accuracy: 0.7685 - val_loss: 0.3675 - val_accuracy: 0.8990
Epoch 29/30
566/566 [==============================] - 9s 16ms/step - loss: 0.7386 - accuracy: 0.7746 - val_loss: 0.3562 - val_accuracy: 0.8997
Epoch 30/30
566/566 [==============================] - 9s 16ms/step - loss: 0.7299 - accuracy: 0.7763 - val_loss: 0.4843 - val_accuracy: 0.8583

Loss on Test Dataset: 0.4393%
Accuracy on Test Dataset: 87.23%
CNN Error on Test Dataset: 12.77%

Hence, I will choose L1 regaluarizer.

2. Optimizers

1. Adam (Adaptive Moment Estimation)
   • Maintains two moving averages for each parameter: the first moment (mean) and the second moment (uncentered variance)
   • Adam adapts the learning rates for each parameter based on their historical gradients, making it well-suited for a variety of optimization problems
2. SGD (Stochastic Gradient Descent)
   • Updates the model parameters in the opposite direction of the gradient of the loss with respect to the parameters
   • Can suffer from slow convergence, especially in the presence of sparse or noisy gradients
3. RMSprop (Root Mean Square Propagation)
   • Focuses on accelerating the optimization process by decreasing the number of function evaluations to reach the local minimum
   • Keeps the moving average of squared gradients for every weight and divides the gradient by the square root of the mean square
   •

A. Input size: 128 by 128 pixels

1. SGD

complex_model_128_3_l2_SGD = Sequential()

# Convolutional Layer
complex_model_128_3_l2_SGD.add(Conv2D(32, (3,3), input_shape=(128, 128, 1), activation='relu'))
# Convolutional Layer
complex_model_128_3_l2_SGD.add(Conv2D(32, (3,3), activation='relu'))
# Pooling layer
complex_model_128_3_l2_SGD.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_128_3_l2_SGD.add(Dropout(0.4))
# Convolutional Layer
complex_model_128_3_l2_SGD.add(Conv2D(64, (3,3), activation='relu'))
# Convolutional Layer
complex_model_128_3_l2_SGD.add(Conv2D(64, (3,3), activation='relu'))
# Pooling layer
complex_model_128_3_l2_SGD.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_128_3_l2_SGD.add(Dropout(0.4))
# Convolutional Layer
complex_model_128_3_l2_SGD.add(Conv2D(128, (3,3), activation='relu'))
# Convolutional Layer
complex_model_128_3_l2_SGD.add(Conv2D(128, (3,3), activation='relu'))
# Pooling layer
complex_model_128_3_l2_SGD.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_128_3_l2_SGD.add(Dropout(0.4))

# Flatten the feature map
complex_model_128_3_l2_SGD.add(Flatten())

# Fully connected layer
complex_model_128_3_l2_SGD.add(Dense(128, activation='relu'))
# Batch Normalization layer
complex_model_128_3_l2_SGD.add(BatchNormalization())
# Dropout layer
complex_model_128_3_l2_SGD.add(Dropout(0.4))
# Outout layer
complex_model_128_3_l2_SGD.add(Dense(num_classes, activation='softmax', kernel_regularizer=tf.keras.regularizers.l2(0.01)))

# Compile basedline_model_128
complex_model_128_3_l2_SGD.compile(loss='categorical_crossentropy', optimizer='SGD', metrics=['accuracy'])

# print the basedline_model_128 summary
complex_model_128_3_l2_SGD.summary()

Model: "sequential_10"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 conv2d_32 (Conv2D)          (None, 126, 126, 32)      320

 conv2d_33 (Conv2D)          (None, 124, 124, 32)      9248

 max_pooling2d_17 (MaxPoolin  (None, 62, 62, 32)       0
 g2D)

 dropout_21 (Dropout)        (None, 62, 62, 32)        0

 conv2d_34 (Conv2D)          (None, 60, 60, 64)        18496

 conv2d_35 (Conv2D)          (None, 58, 58, 64)        36928

 max_pooling2d_18 (MaxPoolin  (None, 29, 29, 64)       0
 g2D)

 dropout_22 (Dropout)        (None, 29, 29, 64)        0

 conv2d_36 (Conv2D)          (None, 27, 27, 128)       73856

 conv2d_37 (Conv2D)          (None, 25, 25, 128)       147584

 max_pooling2d_19 (MaxPoolin  (None, 12, 12, 128)      0
 g2D)

 dropout_23 (Dropout)        (None, 12, 12, 128)       0

 flatten_6 (Flatten)         (None, 18432)             0

 dense_12 (Dense)            (None, 128)               2359424

 batch_normalization_5 (Batc  (None, 128)              512
 hNormalization)

 dropout_24 (Dropout)        (None, 128)               0

 dense_13 (Dense)            (None, 15)                1935

=================================================================
Total params: 2,648,303
Trainable params: 2,648,047
Non-trainable params: 256
_________________________________________________________________

# Fit model with rescaled & data augmented train dataset
history_complex_model_128_3_l2_SGD = complex_model_128_3_l2_SGD.fit(train_ds_128_dataAug_rescaled, validation_data = validation_ds_128_rescaled, epochs = 30, verbose = 1)

# Save model weights
complex_model_128_3_l2_SGD.save_weights('complex_model_128_3_l2_SGD_weights.h5')

# Summarize history for accuracy & loss
plotCompareMetrics(history_complex_model_128_3_l2_SGD)

# Final evaluation of model
scores = complex_model_128_3_l2_SGD.evaluate(test_ds_128_rescaled, verbose = 0)
print("Loss on Test Dataset: %.4f%%" % (scores[0]))
print("Accuracy on Test Dataset: %.2f%%" % (scores[1]*100))
print("CNN Error on Test Dataset: %.2f%%" % (100 - scores[1]*100))

Epoch 1/30
566/566 [==============================] - 45s 76ms/step - loss: 2.8847 - accuracy: 0.1160 - val_loss: 3.0840 - val_accuracy: 0.0667
Epoch 2/30
566/566 [==============================] - 45s 79ms/step - loss: 2.5944 - accuracy: 0.2242 - val_loss: 2.9150 - val_accuracy: 0.1540
Epoch 3/30
566/566 [==============================] - 46s 82ms/step - loss: 2.4015 - accuracy: 0.2791 - val_loss: 3.3412 - val_accuracy: 0.1527
Epoch 4/30
566/566 [==============================] - 62s 109ms/step - loss: 2.2418 - accuracy: 0.3240 - val_loss: 2.9560 - val_accuracy: 0.1753
Epoch 5/30
566/566 [==============================] - 53s 92ms/step - loss: 2.0427 - accuracy: 0.3776 - val_loss: 2.3544 - val_accuracy: 0.2707
Epoch 6/30
566/566 [==============================] - 55s 97ms/step - loss: 1.8702 - accuracy: 0.4377 - val_loss: 2.9764 - val_accuracy: 0.1540
Epoch 7/30
566/566 [==============================] - 52s 93ms/step - loss: 1.7281 - accuracy: 0.4770 - val_loss: 1.6205 - val_accuracy: 0.4957
Epoch 8/30
566/566 [==============================] - 60s 107ms/step - loss: 1.6042 - accuracy: 0.5226 - val_loss: 1.3184 - val_accuracy: 0.6220
Epoch 9/30
566/566 [==============================] - 66s 115ms/step - loss: 1.5013 - accuracy: 0.5514 - val_loss: 3.1717 - val_accuracy: 0.2877
Epoch 10/30
566/566 [==============================] - 81s 143ms/step - loss: 1.4065 - accuracy: 0.5861 - val_loss: 1.6839 - val_accuracy: 0.4673
Epoch 11/30
566/566 [==============================] - 32s 56ms/step - loss: 1.3091 - accuracy: 0.6145 - val_loss: 1.2844 - val_accuracy: 0.6083
Epoch 12/30
566/566 [==============================] - 20s 36ms/step - loss: 1.2411 - accuracy: 0.6433 - val_loss: 1.9822 - val_accuracy: 0.4197
Epoch 13/30
566/566 [==============================] - 20s 35ms/step - loss: 1.1579 - accuracy: 0.6735 - val_loss: 2.9148 - val_accuracy: 0.2677
Epoch 14/30
566/566 [==============================] - 20s 35ms/step - loss: 1.0873 - accuracy: 0.6961 - val_loss: 2.0112 - val_accuracy: 0.4033
Epoch 15/30
566/566 [==============================] - 20s 36ms/step - loss: 1.0162 - accuracy: 0.7230 - val_loss: 6.3398 - val_accuracy: 0.1673
Epoch 16/30
566/566 [==============================] - 21s 37ms/step - loss: 0.9785 - accuracy: 0.7303 - val_loss: 0.8198 - val_accuracy: 0.7947
Epoch 17/30
566/566 [==============================] - 20s 35ms/step - loss: 0.9119 - accuracy: 0.7553 - val_loss: 1.7595 - val_accuracy: 0.5460
Epoch 18/30
566/566 [==============================] - 20s 34ms/step - loss: 0.8577 - accuracy: 0.7697 - val_loss: 0.7021 - val_accuracy: 0.8150
Epoch 19/30
566/566 [==============================] - 20s 35ms/step - loss: 0.8078 - accuracy: 0.7892 - val_loss: 0.9684 - val_accuracy: 0.7237
Epoch 20/30
566/566 [==============================] - 26s 45ms/step - loss: 0.7776 - accuracy: 0.7983 - val_loss: 1.4557 - val_accuracy: 0.5697
Epoch 21/30
566/566 [==============================] - 23s 40ms/step - loss: 0.7449 - accuracy: 0.8084 - val_loss: 0.7774 - val_accuracy: 0.7750
Epoch 22/30
566/566 [==============================] - 21s 37ms/step - loss: 0.7204 - accuracy: 0.8162 - val_loss: 1.1335 - val_accuracy: 0.6960
Epoch 23/30
566/566 [==============================] - 21s 37ms/step - loss: 0.6980 - accuracy: 0.8253 - val_loss: 0.8084 - val_accuracy: 0.7603
Epoch 24/30
566/566 [==============================] - 24s 42ms/step - loss: 0.6471 - accuracy: 0.8382 - val_loss: 1.0631 - val_accuracy: 0.6927
Epoch 25/30
566/566 [==============================] - 32s 56ms/step - loss: 0.6340 - accuracy: 0.8438 - val_loss: 1.3910 - val_accuracy: 0.5797
Epoch 26/30
566/566 [==============================] - 50s 89ms/step - loss: 0.6027 - accuracy: 0.8549 - val_loss: 1.2592 - val_accuracy: 0.6340
Epoch 27/30
566/566 [==============================] - 25s 45ms/step - loss: 0.5801 - accuracy: 0.8620 - val_loss: 0.7457 - val_accuracy: 0.7973
Epoch 28/30
566/566 [==============================] - 20s 36ms/step - loss: 0.5597 - accuracy: 0.8675 - val_loss: 0.4748 - val_accuracy: 0.8887
Epoch 29/30
566/566 [==============================] - 21s 37ms/step - loss: 0.5435 - accuracy: 0.8721 - val_loss: 0.5884 - val_accuracy: 0.8463
Epoch 30/30
566/566 [==============================] - 55s 97ms/step - loss: 0.5310 - accuracy: 0.8763 - val_loss: 0.6686 - val_accuracy: 0.8090

Loss on Test Dataset: 0.6769%
Accuracy on Test Dataset: 80.87%
CNN Error on Test Dataset: 19.13%

2. RMSprop

complex_model_128_3_l2_RMSprop = Sequential()

# Convolutional Layer
complex_model_128_3_l2_RMSprop.add(Conv2D(32, (3,3), input_shape=(128, 128, 1), activation='relu'))
# Convolutional Layer
complex_model_128_3_l2_RMSprop.add(Conv2D(32, (3,3), activation='relu'))
# Pooling layer
complex_model_128_3_l2_RMSprop.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_128_3_l2_RMSprop.add(Dropout(0.4))
# Convolutional Layer
complex_model_128_3_l2_RMSprop.add(Conv2D(64, (3,3), activation='relu'))
# Convolutional Layer
complex_model_128_3_l2_RMSprop.add(Conv2D(64, (3,3), activation='relu'))
# Pooling layer
complex_model_128_3_l2_RMSprop.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_128_3_l2_RMSprop.add(Dropout(0.4))
# Convolutional Layer
complex_model_128_3_l2_RMSprop.add(Conv2D(128, (3,3), activation='relu'))
# Convolutional Layer
complex_model_128_3_l2_RMSprop.add(Conv2D(128, (3,3), activation='relu'))
# Pooling layer
complex_model_128_3_l2_RMSprop.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_128_3_l2_RMSprop.add(Dropout(0.4))

# Flatten the feature map
complex_model_128_3_l2_RMSprop.add(Flatten())

# Fully connected layer
complex_model_128_3_l2_RMSprop.add(Dense(128, activation='relu'))
# Batch Normalization layer
complex_model_128_3_l2_RMSprop.add(BatchNormalization())
# Dropout layer
complex_model_128_3_l2_RMSprop.add(Dropout(0.4))
# Outout layer
complex_model_128_3_l2_RMSprop.add(Dense(num_classes, activation='softmax', kernel_regularizer=tf.keras.regularizers.l2(0.01)))

# Compile basedline_model_128
complex_model_128_3_l2_RMSprop.compile(loss='categorical_crossentropy', optimizer='RMSprop', metrics=['accuracy'])

# print the basedline_model_128 summary
complex_model_128_3_l2_RMSprop.summary()

Model: "sequential_11"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 conv2d_38 (Conv2D)          (None, 126, 126, 32)      320

 conv2d_39 (Conv2D)          (None, 124, 124, 32)      9248

 max_pooling2d_20 (MaxPoolin  (None, 62, 62, 32)       0
 g2D)

 dropout_25 (Dropout)        (None, 62, 62, 32)        0

 conv2d_40 (Conv2D)          (None, 60, 60, 64)        18496

 conv2d_41 (Conv2D)          (None, 58, 58, 64)        36928

 max_pooling2d_21 (MaxPoolin  (None, 29, 29, 64)       0
 g2D)

 dropout_26 (Dropout)        (None, 29, 29, 64)        0

 conv2d_42 (Conv2D)          (None, 27, 27, 128)       73856

 conv2d_43 (Conv2D)          (None, 25, 25, 128)       147584

 max_pooling2d_22 (MaxPoolin  (None, 12, 12, 128)      0
 g2D)

 dropout_27 (Dropout)        (None, 12, 12, 128)       0

 flatten_7 (Flatten)         (None, 18432)             0

 dense_14 (Dense)            (None, 128)               2359424

 batch_normalization_6 (Batc  (None, 128)              512
 hNormalization)

 dropout_28 (Dropout)        (None, 128)               0

 dense_15 (Dense)            (None, 15)                1935

=================================================================
Total params: 2,648,303
Trainable params: 2,648,047
Non-trainable params: 256
_________________________________________________________________

# Fit model with rescaled & data augmented train dataset
history_complex_model_128_3_l2_RMSprop = complex_model_128_3_l2_RMSprop.fit(train_ds_128_dataAug_rescaled, validation_data = validation_ds_128_rescaled, epochs = 30, verbose = 1)

# Save model weights
complex_model_128_3_l2_RMSprop.save_weights('complex_model_128_3_l2_RMSprop_weights.h5')

# Summarize history for accuracy & loss
plotCompareMetrics(history_complex_model_128_3_l2_RMSprop)

# Final evaluation of model
scores = complex_model_128_3_l2_RMSprop.evaluate(test_ds_128_rescaled, verbose = 0)
print("Loss on Test Dataset: %.4f%%" % (scores[0]))
print("Accuracy on Test Dataset: %.2f%%" % (scores[1]*100))
print("CNN Error on Test Dataset: %.2f%%" % (100 - scores[1]*100))

Epoch 1/30
566/566 [==============================] - 33s 44ms/step - loss: 2.3277 - accuracy: 0.2880 - val_loss: 2.0907 - val_accuracy: 0.3513
Epoch 2/30
566/566 [==============================] - 21s 37ms/step - loss: 1.6620 - accuracy: 0.4824 - val_loss: 2.5262 - val_accuracy: 0.2817
Epoch 3/30
566/566 [==============================] - 18s 31ms/step - loss: 1.3595 - accuracy: 0.5903 - val_loss: 1.9372 - val_accuracy: 0.4583
Epoch 4/30
566/566 [==============================] - 15s 25ms/step - loss: 1.1428 - accuracy: 0.6634 - val_loss: 0.9575 - val_accuracy: 0.7050
Epoch 5/30
566/566 [==============================] - 15s 25ms/step - loss: 0.9473 - accuracy: 0.7259 - val_loss: 1.0391 - val_accuracy: 0.6977
Epoch 6/30
566/566 [==============================] - 15s 25ms/step - loss: 0.7937 - accuracy: 0.7774 - val_loss: 0.6227 - val_accuracy: 0.8240
Epoch 7/30
566/566 [==============================] - 14s 25ms/step - loss: 0.6865 - accuracy: 0.8113 - val_loss: 1.0153 - val_accuracy: 0.7310
Epoch 8/30
566/566 [==============================] - 14s 25ms/step - loss: 0.6138 - accuracy: 0.8365 - val_loss: 0.4776 - val_accuracy: 0.8773
Epoch 9/30
566/566 [==============================] - 14s 25ms/step - loss: 0.5422 - accuracy: 0.8561 - val_loss: 0.3654 - val_accuracy: 0.9127
Epoch 10/30
566/566 [==============================] - 14s 25ms/step - loss: 0.4953 - accuracy: 0.8715 - val_loss: 0.5664 - val_accuracy: 0.8380
Epoch 11/30
566/566 [==============================] - 14s 25ms/step - loss: 0.4590 - accuracy: 0.8800 - val_loss: 0.3844 - val_accuracy: 0.8953
Epoch 12/30
566/566 [==============================] - 14s 24ms/step - loss: 0.4166 - accuracy: 0.8902 - val_loss: 1.6069 - val_accuracy: 0.5847
Epoch 13/30
566/566 [==============================] - 14s 24ms/step - loss: 0.3922 - accuracy: 0.8978 - val_loss: 0.4366 - val_accuracy: 0.8807
Epoch 14/30
566/566 [==============================] - 14s 25ms/step - loss: 0.3610 - accuracy: 0.9126 - val_loss: 0.7995 - val_accuracy: 0.7720
Epoch 15/30
566/566 [==============================] - 14s 25ms/step - loss: 0.3255 - accuracy: 0.9179 - val_loss: 1.1625 - val_accuracy: 0.7243
Epoch 16/30
566/566 [==============================] - 14s 25ms/step - loss: 0.3086 - accuracy: 0.9211 - val_loss: 0.3776 - val_accuracy: 0.8943
Epoch 17/30
566/566 [==============================] - 14s 25ms/step - loss: 0.2952 - accuracy: 0.9259 - val_loss: 0.4020 - val_accuracy: 0.8770
Epoch 18/30
566/566 [==============================] - 14s 24ms/step - loss: 0.2801 - accuracy: 0.9298 - val_loss: 0.2576 - val_accuracy: 0.9330
Epoch 19/30
566/566 [==============================] - 14s 25ms/step - loss: 0.2727 - accuracy: 0.9310 - val_loss: 0.4901 - val_accuracy: 0.8520
Epoch 20/30
566/566 [==============================] - 14s 25ms/step - loss: 0.2566 - accuracy: 0.9343 - val_loss: 0.3702 - val_accuracy: 0.8887
Epoch 21/30
566/566 [==============================] - 14s 24ms/step - loss: 0.2446 - accuracy: 0.9379 - val_loss: 1.1856 - val_accuracy: 0.6593
Epoch 22/30
566/566 [==============================] - 14s 24ms/step - loss: 0.2255 - accuracy: 0.9432 - val_loss: 0.3322 - val_accuracy: 0.9097
Epoch 23/30
566/566 [==============================] - 14s 24ms/step - loss: 0.2261 - accuracy: 0.9420 - val_loss: 0.1796 - val_accuracy: 0.9570
Epoch 24/30
566/566 [==============================] - 14s 24ms/step - loss: 0.2162 - accuracy: 0.9458 - val_loss: 0.5956 - val_accuracy: 0.8097
Epoch 25/30
566/566 [==============================] - 14s 24ms/step - loss: 0.2126 - accuracy: 0.9466 - val_loss: 0.7735 - val_accuracy: 0.7760
Epoch 26/30
566/566 [==============================] - 14s 25ms/step - loss: 0.2072 - accuracy: 0.9477 - val_loss: 0.1126 - val_accuracy: 0.9767
Epoch 27/30
566/566 [==============================] - 14s 25ms/step - loss: 0.1903 - accuracy: 0.9523 - val_loss: 0.2158 - val_accuracy: 0.9463
Epoch 28/30
566/566 [==============================] - 14s 25ms/step - loss: 0.1831 - accuracy: 0.9535 - val_loss: 0.1550 - val_accuracy: 0.9607
Epoch 29/30
566/566 [==============================] - 14s 24ms/step - loss: 0.1835 - accuracy: 0.9546 - val_loss: 0.4244 - val_accuracy: 0.8827
Epoch 30/30
566/566 [==============================] - 14s 24ms/step - loss: 0.1738 - accuracy: 0.9561 - val_loss: 0.2662 - val_accuracy: 0.9213

Loss on Test Dataset: 0.2576%
Accuracy on Test Dataset: 92.73%
CNN Error on Test Dataset: 7.27%

Insights:

• It appears the adam is the optimal optimizer for this model.
• I will stick to adam as the optimizer.

B. Input size: 31 by 31 pixels

1. SGD

# Create model
complex_model_31_3_l1_SGD = Sequential()

# Input layer
complex_model_31_3_l1_SGD.add(Conv2D(32, (3, 3), input_shape=(31, 31, 1), activation='relu'))
# Pooling layer
complex_model_31_3_l1_SGD.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_31_3_l1_SGD.add(Dropout(0.2))
# Convolutional layer
complex_model_31_3_l1_SGD.add(Conv2D(64, (3, 3), activation='relu'))
# Pooling layer
complex_model_31_3_l1_SGD.add(MaxPooling2D(pool_size=(2, 2)))
# Batch Normalization
complex_model_31_3_l1_SGD.add(BatchNormalization())
# Dropout layer
complex_model_31_3_l1_SGD.add(Dropout(0.3))
# Convolutional layer
complex_model_31_3_l1_SGD.add(Conv2D(128, (3, 3), activation='relu'))
# Pooling layer
complex_model_31_3_l1_SGD.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout Layer
complex_model_31_3_l1_SGD.add(Dropout(0.2))

# Flatten Feature Map
complex_model_31_3_l1_SGD.add(Flatten())

# Fully Connected Dense Layer
complex_model_31_3_l1_SGD.add(Dense(128, activation='relu'))
# Batch Normalization
complex_model_31_3_l1_SGD.add(BatchNormalization())
# Dropout layer
complex_model_31_3_l1_SGD.add(Dropout(0.2))
# Fully Connected Dense Layer
complex_model_31_3_l1_SGD.add(Dense(64, activation='relu'))
# Output layer
complex_model_31_3_l1_SGD.add(Dense(num_classes, activation='softmax', kernel_regularizer=tf.keras.regularizers.l1(0.01)))

# Compile complex_model_31_3_l1_SGD
complex_model_31_3_l1_SGD.compile(loss='categorical_crossentropy', optimizer='SGD', metrics=['accuracy'])

# complex_model_31_3_l1_SGD summary
complex_model_31_3_l1_SGD.summary()

Model: "sequential_35"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 conv2d_113 (Conv2D)         (None, 29, 29, 32)        320

 max_pooling2d_80 (MaxPoolin  (None, 14, 14, 32)       0
 g2D)

 dropout_89 (Dropout)        (None, 14, 14, 32)        0

 conv2d_114 (Conv2D)         (None, 12, 12, 64)        18496

 max_pooling2d_81 (MaxPoolin  (None, 6, 6, 64)         0
 g2D)

 batch_normalization_32 (Bat  (None, 6, 6, 64)         256
 chNormalization)

 dropout_90 (Dropout)        (None, 6, 6, 64)          0

 conv2d_115 (Conv2D)         (None, 4, 4, 128)         73856

 max_pooling2d_82 (MaxPoolin  (None, 2, 2, 128)        0
 g2D)

 dropout_91 (Dropout)        (None, 2, 2, 128)         0

 flatten_29 (Flatten)        (None, 512)               0

 dense_68 (Dense)            (None, 128)               65664

 batch_normalization_33 (Bat  (None, 128)              512
 chNormalization)

 dropout_92 (Dropout)        (None, 128)               0

 dense_69 (Dense)            (None, 64)                8256

 dense_70 (Dense)            (None, 15)                975

=================================================================
Total params: 168,335
Trainable params: 167,951
Non-trainable params: 384
_________________________________________________________________

# Fit model with rescaled & data augmented train dataset
history_complex_model_31_3_l1_SGD = complex_model_31_3_l1_SGD.fit(train_ds_31_dataAug_rescaled, validation_data = validation_ds_31_rescaled, epochs = 30, verbose = 1)

# Save model weights
complex_model_31_3_l1_SGD.save_weights('complex_model_31_3_l1_SGD_weights.h5')

# Summarize history for accuracy & loss
plotCompareMetrics(history_complex_model_31_3_l1_SGD)

# Final evaluation of model
scores = complex_model_31_3_l1_SGD.evaluate(test_ds_31_rescaled, verbose = 0)
print("Loss on Test Dataset: %.4f%%" % (scores[0]))
print("Accuracy on Test Dataset: %.2f%%" % (scores[1]*100))
print("CNN Error on Test Dataset: %.2f%%" % (100 - scores[1]*100))

Epoch 1/30
566/566 [==============================] - 10s 17ms/step - loss: 3.5758 - accuracy: 0.1803 - val_loss: 3.5372 - val_accuracy: 0.1100
Epoch 2/30
566/566 [==============================] - 9s 16ms/step - loss: 2.8657 - accuracy: 0.2602 - val_loss: 3.0252 - val_accuracy: 0.1667
Epoch 3/30
566/566 [==============================] - 9s 16ms/step - loss: 2.4943 - accuracy: 0.3018 - val_loss: 2.9160 - val_accuracy: 0.1827
Epoch 4/30
566/566 [==============================] - 9s 16ms/step - loss: 2.3122 - accuracy: 0.3240 - val_loss: 2.7399 - val_accuracy: 0.2093
Epoch 5/30
566/566 [==============================] - 9s 16ms/step - loss: 2.2179 - accuracy: 0.3406 - val_loss: 2.4555 - val_accuracy: 0.2813
Epoch 6/30
566/566 [==============================] - 9s 16ms/step - loss: 2.1510 - accuracy: 0.3471 - val_loss: 2.3253 - val_accuracy: 0.2807
Epoch 7/30
566/566 [==============================] - 9s 16ms/step - loss: 2.0935 - accuracy: 0.3656 - val_loss: 3.6947 - val_accuracy: 0.1393
Epoch 8/30
566/566 [==============================] - 9s 15ms/step - loss: 2.0525 - accuracy: 0.3754 - val_loss: 2.4942 - val_accuracy: 0.2580
Epoch 9/30
566/566 [==============================] - 8s 15ms/step - loss: 2.0065 - accuracy: 0.3929 - val_loss: 2.5028 - val_accuracy: 0.2750
Epoch 10/30
566/566 [==============================] - 9s 16ms/step - loss: 1.9687 - accuracy: 0.3972 - val_loss: 2.2043 - val_accuracy: 0.3403
Epoch 11/30
566/566 [==============================] - 9s 16ms/step - loss: 1.9217 - accuracy: 0.4152 - val_loss: 3.9492 - val_accuracy: 0.1470
Epoch 12/30
566/566 [==============================] - 9s 16ms/step - loss: 1.8905 - accuracy: 0.4245 - val_loss: 2.4320 - val_accuracy: 0.2990
Epoch 13/30
566/566 [==============================] - 9s 16ms/step - loss: 1.8509 - accuracy: 0.4402 - val_loss: 2.5448 - val_accuracy: 0.2897
Epoch 14/30
566/566 [==============================] - 9s 16ms/step - loss: 1.8166 - accuracy: 0.4503 - val_loss: 2.7866 - val_accuracy: 0.2583
Epoch 15/30
566/566 [==============================] - 9s 15ms/step - loss: 1.7807 - accuracy: 0.4628 - val_loss: 3.6068 - val_accuracy: 0.2460
Epoch 16/30
566/566 [==============================] - 9s 16ms/step - loss: 1.7554 - accuracy: 0.4747 - val_loss: 3.1680 - val_accuracy: 0.1730
Epoch 17/30
566/566 [==============================] - 9s 16ms/step - loss: 1.7463 - accuracy: 0.4765 - val_loss: 3.1721 - val_accuracy: 0.2233
Epoch 18/30
566/566 [==============================] - 9s 16ms/step - loss: 1.7078 - accuracy: 0.4824 - val_loss: 2.5862 - val_accuracy: 0.3113
Epoch 19/30
566/566 [==============================] - 8s 14ms/step - loss: 1.6790 - accuracy: 0.4948 - val_loss: 4.0371 - val_accuracy: 0.1757
Epoch 20/30
566/566 [==============================] - 9s 16ms/step - loss: 1.6502 - accuracy: 0.5094 - val_loss: 1.6571 - val_accuracy: 0.5173
Epoch 21/30
566/566 [==============================] - 9s 16ms/step - loss: 1.6284 - accuracy: 0.5129 - val_loss: 1.8519 - val_accuracy: 0.4390
Epoch 22/30
566/566 [==============================] - 9s 16ms/step - loss: 1.5958 - accuracy: 0.5266 - val_loss: 3.1363 - val_accuracy: 0.2500
Epoch 23/30
566/566 [==============================] - 9s 16ms/step - loss: 1.5780 - accuracy: 0.5322 - val_loss: 2.8243 - val_accuracy: 0.2910
Epoch 24/30
566/566 [==============================] - 9s 16ms/step - loss: 1.5478 - accuracy: 0.5406 - val_loss: 4.6573 - val_accuracy: 0.1977
Epoch 25/30
566/566 [==============================] - 9s 16ms/step - loss: 1.5276 - accuracy: 0.5500 - val_loss: 2.0766 - val_accuracy: 0.4017
Epoch 26/30
566/566 [==============================] - 9s 16ms/step - loss: 1.5185 - accuracy: 0.5524 - val_loss: 1.4910 - val_accuracy: 0.5523
Epoch 27/30
566/566 [==============================] - 9s 16ms/step - loss: 1.4913 - accuracy: 0.5554 - val_loss: 3.6806 - val_accuracy: 0.2647
Epoch 28/30
566/566 [==============================] - 9s 16ms/step - loss: 1.4758 - accuracy: 0.5692 - val_loss: 1.7641 - val_accuracy: 0.4740
Epoch 29/30
566/566 [==============================] - 8s 15ms/step - loss: 1.4476 - accuracy: 0.5805 - val_loss: 2.0668 - val_accuracy: 0.3920
Epoch 30/30
566/566 [==============================] - 9s 16ms/step - loss: 1.4489 - accuracy: 0.5795 - val_loss: 2.0732 - val_accuracy: 0.4133

Loss on Test Dataset: 2.0769%
Accuracy on Test Dataset: 41.20%
CNN Error on Test Dataset: 58.80%

2. RMSprop

# Create model
complex_model_31_3_l1_RMSprop = Sequential()

# Input layer
complex_model_31_3_l1_RMSprop.add(Conv2D(32, (3, 3), input_shape=(31, 31, 1), activation='relu'))
# Pooling layer
complex_model_31_3_l1_RMSprop.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout layer
complex_model_31_3_l1_RMSprop.add(Dropout(0.2))
# Convolutional layer
complex_model_31_3_l1_RMSprop.add(Conv2D(64, (3, 3), activation='relu'))
# Pooling layer
complex_model_31_3_l1_RMSprop.add(MaxPooling2D(pool_size=(2, 2)))
# Batch Normalization
complex_model_31_3_l1_RMSprop.add(BatchNormalization())
# Dropout layer
complex_model_31_3_l1_RMSprop.add(Dropout(0.3))
# Convolutional layer
complex_model_31_3_l1_RMSprop.add(Conv2D(128, (3, 3), activation='relu'))
# Pooling layer
complex_model_31_3_l1_RMSprop.add(MaxPooling2D(pool_size=(2, 2)))
# Dropout Layer
complex_model_31_3_l1_RMSprop.add(Dropout(0.2))

# Flatten Feature Map
complex_model_31_3_l1_RMSprop.add(Flatten())

# Fully Connected Dense Layer
complex_model_31_3_l1_RMSprop.add(Dense(128, activation='relu'))
# Batch Normalization
complex_model_31_3_l1_RMSprop.add(BatchNormalization())
# Dropout layer
complex_model_31_3_l1_RMSprop.add(Dropout(0.2))
# Fully Connected Dense Layer
complex_model_31_3_l1_RMSprop.add(Dense(64, activation='relu'))
# Output layer
complex_model_31_3_l1_RMSprop.add(Dense(num_classes, activation='softmax', kernel_regularizer=tf.keras.regularizers.l1(0.01)))

# Compile complex_model_31_3_l1_RMSprop
complex_model_31_3_l1_RMSprop.compile(loss='categorical_crossentropy', optimizer='RMSprop', metrics=['accuracy'])

# complex_model_31_3_l1_RMSprop summary
complex_model_31_3_l1_RMSprop.summary()

Model: "sequential_36"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 conv2d_116 (Conv2D)         (None, 29, 29, 32)        320

 max_pooling2d_83 (MaxPoolin  (None, 14, 14, 32)       0
 g2D)

 dropout_93 (Dropout)        (None, 14, 14, 32)        0

 conv2d_117 (Conv2D)         (None, 12, 12, 64)        18496

 max_pooling2d_84 (MaxPoolin  (None, 6, 6, 64)         0
 g2D)

 batch_normalization_34 (Bat  (None, 6, 6, 64)         256
 chNormalization)

 dropout_94 (Dropout)        (None, 6, 6, 64)          0

 conv2d_118 (Conv2D)         (None, 4, 4, 128)         73856

 max_pooling2d_85 (MaxPoolin  (None, 2, 2, 128)        0
 g2D)

 dropout_95 (Dropout)        (None, 2, 2, 128)         0

 flatten_30 (Flatten)        (None, 512)               0

 dense_71 (Dense)            (None, 128)               65664

 batch_normalization_35 (Bat  (None, 128)              512
 chNormalization)

 dropout_96 (Dropout)        (None, 128)               0

 dense_72 (Dense)            (None, 64)                8256

 dense_73 (Dense)            (None, 15)                975

=================================================================
Total params: 168,335
Trainable params: 167,951
Non-trainable params: 384
_________________________________________________________________

# Fit model with rescaled & data augmented train dataset
history_complex_model_31_3_l1_RMSprop = complex_model_31_3_l1_RMSprop.fit(train_ds_31_dataAug_rescaled, validation_data = validation_ds_31_rescaled, epochs = 30, verbose = 1)

# Save model weights
complex_model_31_3_l1_RMSprop.save_weights('complex_model_31_3_l1_RMSprop_weights.h5')

# Summarize history for accuracy & loss
plotCompareMetrics(history_complex_model_31_3_l1_RMSprop)

# Final evaluation of model
scores = complex_model_31_3_l1_RMSprop.evaluate(test_ds_31_rescaled, verbose = 0)
print("Loss on Test Dataset: %.4f%%" % (scores[0]))
print("Accuracy on Test Dataset: %.2f%%" % (scores[1]*100))
print("CNN Error on Test Dataset: %.2f%%" % (100 - scores[1]*100))

Epoch 1/30
566/566 [==============================] - 13s 22ms/step - loss: 2.8488 - accuracy: 0.3046 - val_loss: 4.1328 - val_accuracy: 0.1343
Epoch 2/30
566/566 [==============================] - 13s 22ms/step - loss: 2.0210 - accuracy: 0.4268 - val_loss: 1.8131 - val_accuracy: 0.4623
Epoch 3/30
566/566 [==============================] - 12s 22ms/step - loss: 1.7680 - accuracy: 0.4954 - val_loss: 1.8614 - val_accuracy: 0.4670
Epoch 4/30
566/566 [==============================] - 12s 22ms/step - loss: 1.6290 - accuracy: 0.5337 - val_loss: 1.7904 - val_accuracy: 0.5040
Epoch 5/30
566/566 [==============================] - 13s 22ms/step - loss: 1.5215 - accuracy: 0.5670 - val_loss: 2.7096 - val_accuracy: 0.3207
Epoch 6/30
566/566 [==============================] - 13s 22ms/step - loss: 1.4421 - accuracy: 0.5953 - val_loss: 2.0515 - val_accuracy: 0.4377
Epoch 7/30
566/566 [==============================] - 11s 20ms/step - loss: 1.3734 - accuracy: 0.6200 - val_loss: 3.9379 - val_accuracy: 0.2673
Epoch 8/30
566/566 [==============================] - 12s 22ms/step - loss: 1.3276 - accuracy: 0.6301 - val_loss: 1.6018 - val_accuracy: 0.5687
Epoch 9/30
566/566 [==============================] - 12s 22ms/step - loss: 1.2848 - accuracy: 0.6433 - val_loss: 1.0317 - val_accuracy: 0.7227
Epoch 10/30
566/566 [==============================] - 12s 22ms/step - loss: 1.2208 - accuracy: 0.6638 - val_loss: 0.9469 - val_accuracy: 0.7583
Epoch 11/30
566/566 [==============================] - 12s 22ms/step - loss: 1.2058 - accuracy: 0.6715 - val_loss: 1.4766 - val_accuracy: 0.6113
Epoch 12/30
566/566 [==============================] - 12s 22ms/step - loss: 1.1603 - accuracy: 0.6835 - val_loss: 0.8766 - val_accuracy: 0.7803
Epoch 13/30
566/566 [==============================] - 12s 22ms/step - loss: 1.1369 - accuracy: 0.6871 - val_loss: 0.8082 - val_accuracy: 0.8013
Epoch 14/30
566/566 [==============================] - 12s 21ms/step - loss: 1.1103 - accuracy: 0.6977 - val_loss: 1.1794 - val_accuracy: 0.6787
Epoch 15/30
566/566 [==============================] - 12s 21ms/step - loss: 1.0827 - accuracy: 0.7093 - val_loss: 1.6141 - val_accuracy: 0.5620
Epoch 16/30
566/566 [==============================] - 12s 22ms/step - loss: 1.0633 - accuracy: 0.7154 - val_loss: 0.8495 - val_accuracy: 0.7860
Epoch 17/30
566/566 [==============================] - 13s 22ms/step - loss: 1.0440 - accuracy: 0.7201 - val_loss: 0.7923 - val_accuracy: 0.7967
Epoch 18/30
566/566 [==============================] - 12s 22ms/step - loss: 1.0472 - accuracy: 0.7191 - val_loss: 1.3680 - val_accuracy: 0.6313
Epoch 19/30
566/566 [==============================] - 12s 22ms/step - loss: 1.0135 - accuracy: 0.7315 - val_loss: 0.7122 - val_accuracy: 0.8243
Epoch 20/30
566/566 [==============================] - 12s 22ms/step - loss: 1.0132 - accuracy: 0.7287 - val_loss: 0.7586 - val_accuracy: 0.8073
Epoch 21/30
566/566 [==============================] - 12s 22ms/step - loss: 0.9894 - accuracy: 0.7329 - val_loss: 0.5864 - val_accuracy: 0.8697
Epoch 22/30
566/566 [==============================] - 11s 19ms/step - loss: 0.9850 - accuracy: 0.7368 - val_loss: 0.9186 - val_accuracy: 0.7543
Epoch 23/30
566/566 [==============================] - 12s 22ms/step - loss: 0.9475 - accuracy: 0.7513 - val_loss: 3.2062 - val_accuracy: 0.3783
Epoch 24/30
566/566 [==============================] - 12s 22ms/step - loss: 0.9494 - accuracy: 0.7466 - val_loss: 0.8951 - val_accuracy: 0.7557
Epoch 25/30
566/566 [==============================] - 12s 22ms/step - loss: 0.9430 - accuracy: 0.7514 - val_loss: 1.9005 - val_accuracy: 0.5310
Epoch 26/30
566/566 [==============================] - 13s 22ms/step - loss: 0.9312 - accuracy: 0.7540 - val_loss: 0.7661 - val_accuracy: 0.8010
Epoch 27/30
566/566 [==============================] - 13s 22ms/step - loss: 0.9115 - accuracy: 0.7599 - val_loss: 1.8628 - val_accuracy: 0.5197
Epoch 28/30
566/566 [==============================] - 13s 22ms/step - loss: 0.9237 - accuracy: 0.7550 - val_loss: 0.8218 - val_accuracy: 0.7910
Epoch 29/30
566/566 [==============================] - 12s 21ms/step - loss: 0.9042 - accuracy: 0.7643 - val_loss: 0.6165 - val_accuracy: 0.8463
Epoch 30/30
566/566 [==============================] - 12s 21ms/step - loss: 0.8770 - accuracy: 0.7712 - val_loss: 0.6851 - val_accuracy: 0.8383

Loss on Test Dataset: 0.6771%
Accuracy on Test Dataset: 83.73%
CNN Error on Test Dataset: 16.27%

Hence, I will stick to adam for the optimizer

---

6. Model Evaluation

A. Input size: 128 by 128 pixels

tf.keras.utils.plot_model(complex_model_128_3_l2, show_shapes=True)

# Load weights
complex_model_128_3_l2.load_weights('cnn_complex_model_128_3_l2_best_weights.h5')

# Make Predictions on Test Dataset
y_trueLabels_128, y_preds_128, trueClass_128, FalseClass_128 = makePredictions(complex_model_128_3_l2, test_ds_128_rescaled, class_names)
# Plot Confusion Matrix
plot_confusion_matrix(y_trueLabels_128, y_preds_128, class_names)

94/94 [==============================] - 1s 16ms/step

• Most Labels Getting Mixed Up

  • Capsicum:
    • 12 wrongly classified as Tomato, Papaya, Bean, Brinjal, Bottle_Groud
  • Tomato:
    • 11 wrongly classified as Radish, Potato, Cabbage, Bean, Brinjal

• Otherwise, the model is able to predict most labels accurately with less than 10 samples wrongly classified

B. Input size: 31 by 31 pixels

tf.keras.utils.plot_model(complex_model_31_3_l1, show_shapes=True)

# load weights
complex_model_31_3_l1.load_weights('cnn_complex_model_31_3_l1_best_weights.h5')

# Make Predictions on Test Dataset
y_trueLabels_31, y_preds_31, trueClass_31, FalseClass_31 = makePredictions(complex_model_31_3_l1, test_ds_31_rescaled, class_names)
# Plot Confusion Matrix
plot_confusion_matrix(y_trueLabels_31, y_preds_31, class_names)

94/94 [==============================] - 0s 2ms/step

• Most Labels Getting Mixed Up

  • Cabbage:
    • 25 wrongly classified as Cauliflower, Pumpkin, Broccoli
  • Radish:
    • 11 wrongly classified as Radish, Potato, Cabbage, Bean, Brinjal

• Otherwise, the model is able to predict most labels accurately

• Compared to 128x128, 31x31 has more errors in identifying the labels

---

7. Error Analysis

A. Input size: 128 by 128 pixels

plot_prediction(FalseClass_128)

Insights:

1. The model gets confused between Capsicum/Tomato due to their similar circular shape and Carrot/Potato/Papaya due to similar oval shape
2. The model fails to correctly classifiy the vegetable as the test images are stretched or taken form an awkward angle as seen in the tomato images

B. Input size: 31 by 31 pixels

plot_prediction(FalseClass_31)

Insights:

• Similarly, the model gets confused between vegetables such as Brinjal/Tomato due to their similar circular shape

• However, there are instances whereby the vegetables have different shapes but the model still wrongly classifies it.

  • Bitter Gourd has an oval shape while Tomato has a circular shape

• At 31 x 31 pixels, the shapes are harder to be captured by the model.
